Spiral Point Taps

Nitro Spiral Point Taps

HIGH SPEED STEEL - Metric / Bright
PACKAGING:
1.6 mm thru 6.3 mm - 12 per pack
7 mm thru 12 mm - 6 per pack
14 mm thru 20 mm - 3 per pack

Size (mm)

 Pitch Dia. (mm) No. of Flutes Pitch Dia Limits 2850 EDP No
Plug

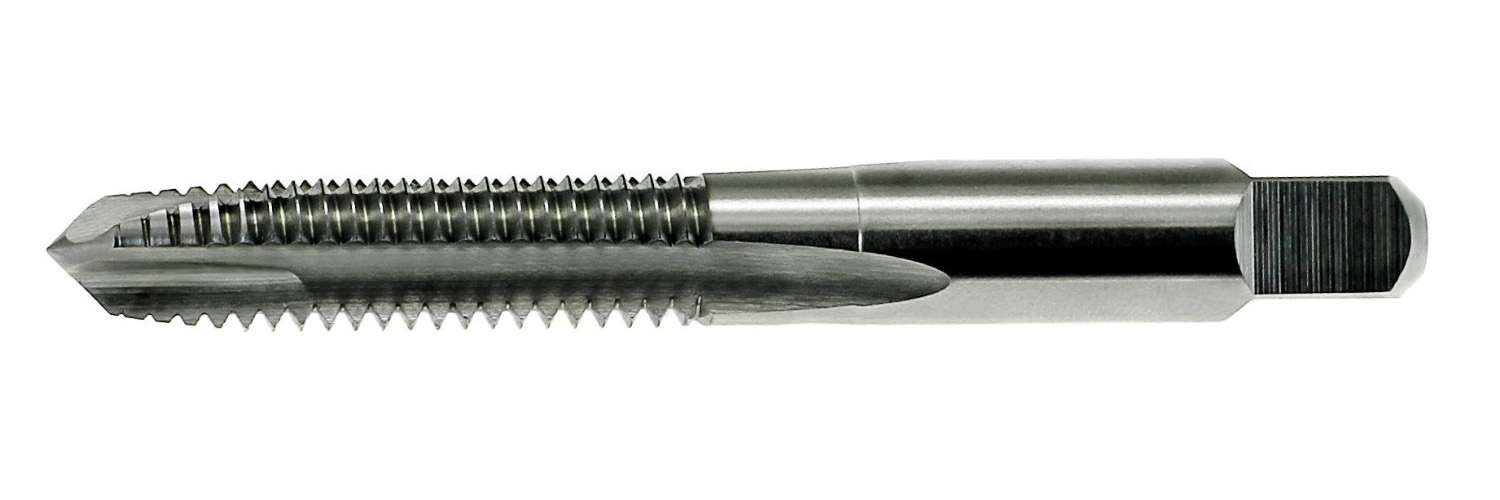

The angular flutes at the front end of these taps propel the chips ahead of the tap. This reduce loading and clogging in the flutes. Spiral Point taps are ideal for production tapping thru holes. Sometimes referred to as “Gun Taps”, spiral point taps“shoot” the chips ahead of the tap.
2850 PLUG / THROUGH HOLE
1.6 0.35 2 D3 285A016A
1.8 0.35 2 D3 285A018A
2 0.4 2 D3 285A020A
2.2 0.45 2 D3 285A022A
2.5 0.45 2 D3 285A025A
3 0.5 2 D3 285A030A
3.5 0.6 2 D4 285A035A
4 0.7 2 D4 285A040A
4.5 0.75 2 D4 285A045A
5 0.8 2 D4 285A050A
6 1 2 D5 285A060A
6.3 1 2 D5 285A063A
7 1 2 D5 285A070A
8 1.25 2 D5 285A080A
8 1 2 D5 285A080B
10 1.5 3 D6 285A100A
10 1.25 3 D5 285A100B
12 1.75 3 D6 285A120A
12 1.25 3 D5 285A120C
14 2 3 D7 285A140A
14 1.5 3 D6 285A140B
16 2 3 D7 285A160A
16 1.5 3 D6 285A160B
18 2.5 4 D7 285A180A
20 2.5 4 D7 285A200A
20 1.5 4 D6 285A200B
