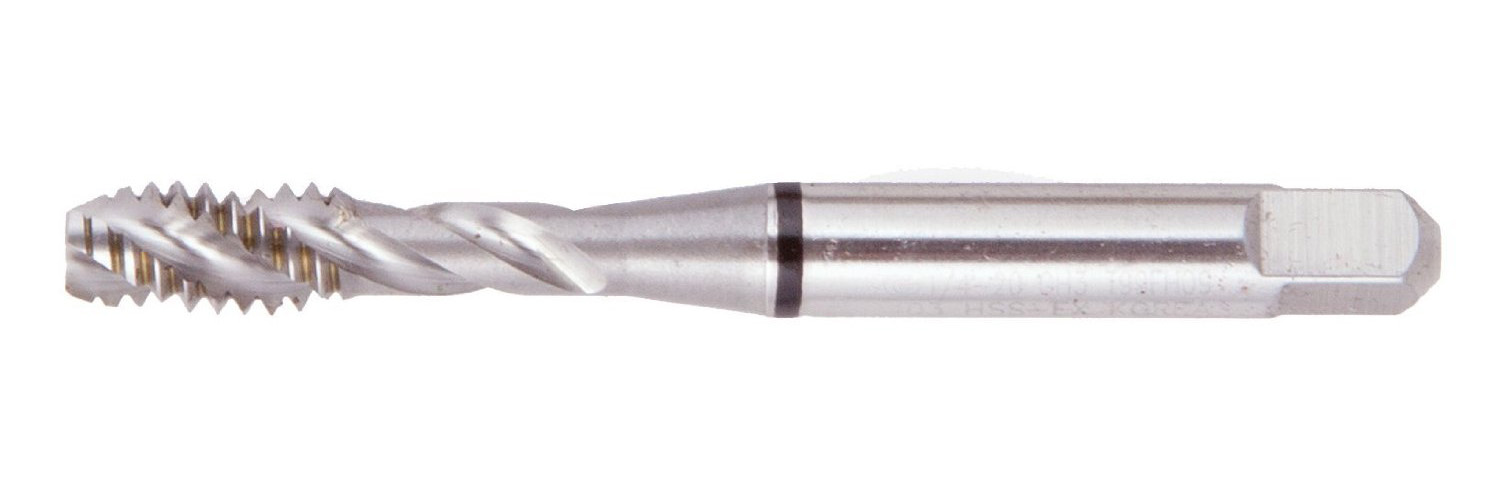

Nitro Spiral Flute Taps
|
|||||||
|---|---|---|---|---|---|---|---|
| Size | NC | NF | No. of Flutes | Pitch Dia. Limits | 2000PF EDP No. | ||
|
|||||||
| 2000PF BOTTOMING / BLIND HOLE | |||||||
| 4 | 40 | – | 2 | H2 | 20PF004C | ||
| 4 | – | 48 | 2 | H2 | 20PF004F | ||
| 5 | 40 | – | 3 | H2 | 20PF005C | ||
| 5 | – | 44 | 3 | H2 | 20PF005F | ||
| 6 | 32 | – | 3 | H3 | 20PF006C | ||
| 6 | – | 40 | 3 | H2 | 20PF006F | ||
| 8 | 32 | – | 3 | H3 | 20PF008C | ||
| 8 | – | 36 | 3 | H2 | 20PF008F | ||
| 10 | 24 | – | 3 | H3 | 20PF010C | ||
| 10 | – | 32 | 3 | H3 | 20PF010F | ||
| 12 | 24 | – | 3 | H3 | 20PF012C | ||
| 12 | – | 28 | 3 | H3 | 20PF012F | ||
| 1/4" | 20 | – | 3 | H3 | 20PF116C | ||
| 1/4" | 20 | – | 3 | H5 | 20PF116C5 | ||
| 1/4" | – | 28 | 3 | H3 | 20PF116F | ||
| 1/4" | – | 28 | 3 | H4 | 20PF116F4 | ||
| 5/16" | 18 | – | 3 | H3 | 20PF120C | ||
| 5/16" | 18 | – | 3 | H5 | 20PF120C5 | ||
| 5/16" | – | 24 | 3 | H3 | 20PF120F | ||
| 5/16" | – | 24 | 3 | H5 | 20PF120F5 | ||
| 3/8" | 16 | – | 3 | H3 | 20PF124C | ||
| 3/8" | 16 | – | 3 | H5 | 20PF124C5 | ||
| 3/8" | – | 24 | 3 | H3 | 20PF124F | ||
| 3/8" | – | 24 | 3 | H4 | 20PF124F4 | ||
| 7/16" | 14 | – | 3 | H3 | 20PF128C | ||
| 7/16" | 14 | – | 3 | H5 | 20PF128C | ||
| 7/16" | – | 20 | 3 | H3 | 20PF128F | ||
| 7/16" | – | 20 | 3 | H5 | 20PF128F5 | ||
| 1/2" | 13 | – | 3 | H5 | 20PF132C | ||
| 1/2" | – | 20 | 3 | H5 | 20PF132F | ||
| 9/16" | 12 | – | 3 | H5 | 20PF136C | ||
| 9/16" | – | 18 | 3 | H5 | 20PF136F | ||
| 5/8" | 11 | – | 4 | H5 | 20PF140C | ||
| 5/8" | – | 18 | 4 | H5 | 20PF140F | ||
| 3/4" | 10 | – | 4 | H5 | 20PF148C | ||
| 3/4" | – | 16 | 4 | H5 | 20PF148F | ||
| 7/8" | 9 | – | 4 | H6 | 20PF156C | ||
| 7/8" | – | 14 | 4 | H6 | 20PF156F | ||
| 1" | 8 | – | 4 | H6 | 20PF164C | ||
| 1" | – | 12 | 4 | H6 | 20PF164F | ||
|
||||||
|---|---|---|---|---|---|---|
| Size | Pitch (mm) | No. of Flutes | Pitch Dia. Limits | 2000PF EDP No. | ||
|
||||||
| 2000PF BOTTOMING / BLIND HOLE | ||||||
| M3 | 0.5 | 3 | D3 | 20PF030A | ||
| M3.5 | 0.6 | 3 | D4 | 20PF035A | ||
| M4 | 0.7 | 3 | D4 | 20PF040A | ||
| M5 | 0.8 | 3 | D4 | 20PF050A | ||
| M6 | 1 | 3 | D5 | 20PF060A | ||
| M7 | 1 | 3 | D5 | 20PF070A | ||
| M8 | 1.25 | 3 | D5 | 20PF080A | ||
| M8 | 1 | 3 | D5 | 20PF080B | ||
| M10 | 1.5 | 3 | D6 | 20PF100A6 | ||
| M10 | 1.5 | 3 | D5 | 20PF100A | ||
| M12 | 1.75 | 3 | D6 | 20PF120A | ||
| M12 | 1.25 | 3 | D5 | 20PF120C | ||
| M14 | 2 | 3 | D7 | 20PF140A | ||
| M14 | 1.5 | 3 | D6 | 20PF140B | ||
| M16 | 2 | 3 | D7 | 20PF160A | ||
| M16 | 1.5 | 3 | D6 | 20PF160B | ||
| M18 | 2.5 | 4 | D7 | 20PF180A | ||
| M18 | 1.5 | 4 | D6 | 20PF180D | ||
| M20 | 2.5 | 4 | D7 | 20PF200A | ||
| M20 | 1.5 | 4 | D6 | 20PF200B | ||
| M22 | 2.5 | 4 | D7 | 20PF220A | ||
| M22 | 1.5 | 4 | D6 | 20PF220B | ||
| M24 | 3 | 4 | D8 | 20PF240A | ||
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Size | NC | NF | Length of Thread | No. of Flutes | 2000F EDP No. | |||
| Plug | Bottoming | |||||||
|
||||||||
| 2000F PLUG & BOTTOMING / BLIND HOLE | ||||||||
| 3 | 48 | – | 1/2" | 2 | 20F003CP | 20F003CB | ||
| 3 | – | 56 | 1/2" | 2 | 20F003FP | 20F003FB | ||
| 4 | 40 | – | 9/16" | 2 | 20F004CP | 20F004CB | ||
| 4 | – | 48 | 9/16" | 2 | 20F004FP | 20F004FB | ||
| 5 | 40 | – | 5/8" | 2 | 20F005CP | 20F005CB | ||
| 5 | – | 44 | 5/8" | 2 | 20F005FP | 20F005FB | ||
| 6 | 32 | – | 11/16" | 2 | 20F006CP | 20F006CB | ||
| 6 | – | 40 | 11/16" | 2 | 20F006FP | 20F006FB | ||
| 8 | 32 | – | 3/4" | 3 | 20F008CP | 20F008CB | ||
| 8 | – | 36 | 3/4" | 3 | 20F008FP | 20F008FB | ||
| 10 | 24 | – | 7/8" | 3 | 20F010CP | 20F010CB | ||
| 10 | – | 32 | 7/8" | 3 | 20F010FP | 20F010FB | ||
| 12 | 24 | – | 1" | 3 | 20F012CP | 20F012CB | ||
| 12 | – | 28 | 1" | 3 | 20F012FP | 20F012FB | ||
| 1/4" | 20 | – | 1" | 3 | 20F116CP | 20F116CB | ||
| 1/4" | – | 28 | 1" | 3 | 20F116FP | 20F116FB | ||
| 5/16" | 18 | – | 1-1/8" | 3 | 20F120CP | 20F120CB | ||
| 5/16" | – | 24 | 1-1/8" | 3 | 20F120FP | 20F120FB | ||
| 3/8" | 16 | – | 1-5/16" | 3 | 20F124CP | 20F124CB | ||
| 3/8" | – | 24 | 1-5/16" | 3 | 20F124FP | 20F124FB | ||
| 7/16" | 14 | – | 1-7/16" | 3 | 20F128CP | 20F128CB | ||
| 7/16" | – | 20 | 1-7/16" | 3 | 20F128FP | 20F128FB | ||
| 1/2" | 13 | – | 1-21/32" | 3 | 20F132CP | 20F132CB | ||
| 1/2" | – | 20 | 1-21/32" | 3 | 20F132FP | 20F132FB | ||
| 5/8" | 11 | – | 1-13/16" | 4 | 20F140CP | 20F140CB | ||
| 3/4" | 10 | – | 2-1/16" | 4 | 20F148CP | 20F148CB | ||
