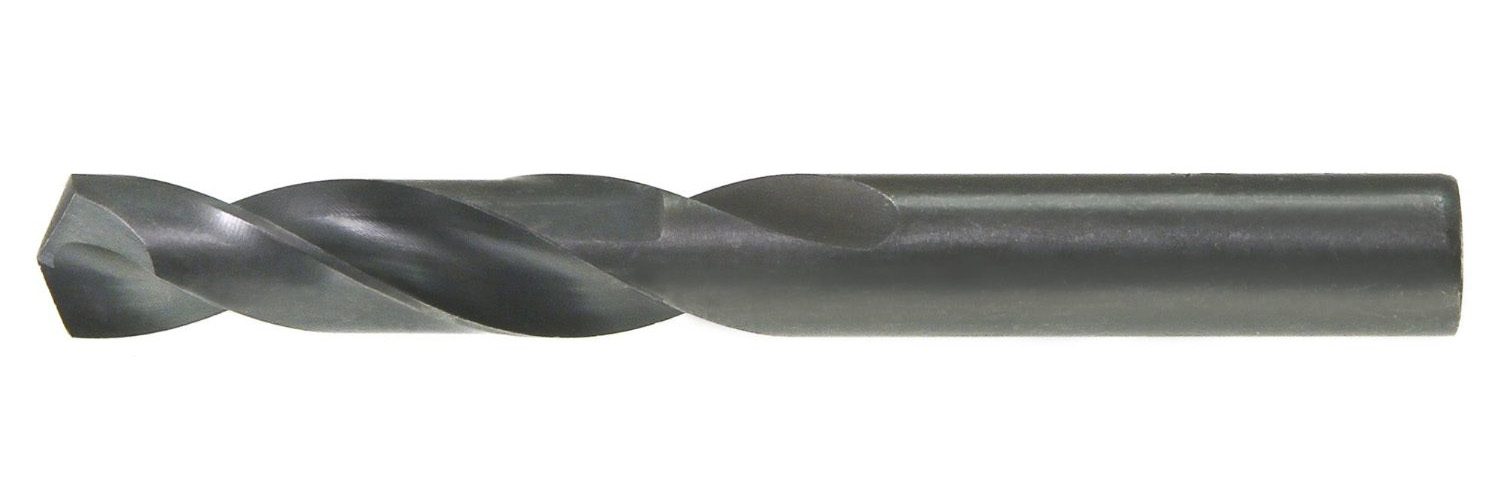

Screw Machine Length Drills HS
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 300 EDP No. | ||
|
|||||
| Series 300 135° SPLIT POINT / STRAIGHT SHANK | |||||
| 1/16" | 5/8" | 1-5/8" | 300A104 | ||
| 5/64" | 11/16" | 1-11/16" | 300A105 | ||
| 3/32" | 3/4" | 1-3/4" | 300A106 | ||
| 7/64" | 13/16" | 1-13/16" | 300A107 | ||
| 1/8" | 7/8" | 1-7/8" | 300A108 | ||
| 9/64" | 15/16" | 1-15/16" | 300A109 | ||
| 5/32" | 1" | 2-1/16" | 300A110 | ||
| 11/64" | 1-1/16" | 2-1/8" | 300A111 | ||
| 3/16" | 1-1/8" | 2-3/16" | 300A112 | ||
| 13/64" | 1-3/16" | 2-1/4" | 300A113 | ||
| 7/32" | 1-1/4" | 2-3/8" | 300A114 | ||
| 15/64" | 1-5/16" | 2-7/16" | 300A115 | ||
| 1/4" | 1-3/8" | 2-1/2" | 300A116 | ||
| 17/64" | 1-7/16" | 2-5/8" | 300A117 | ||
| 9/32" | 1-1/2" | 2-11/16" | 300A118 | ||
| 19/64" | 1-9/16" | 2-3/4" | 300A119 | ||
| 5/16" | 1-5/8" | 2-13/16" | 300A120 | ||
| 21/64" | 1-11/16" | 2-15/16" | 300A121 | ||
| 11/32" | 1-11/16" | 3" | 300A122 | ||
| 23/64" | 1-3/4" | 3-1/16" | 300A123 | ||
| 3/8" | 1-13/16" | 3-1/8" | 300A124 | ||
| 25/64" | 1-7/8" | 3-1/4" | 300A125 | ||
| 13/32" | 1-15/16" | 3-5/16" | 300A126 | ||
| 27/64" | 2" | 3-3/8" | 300A127 | ||
| 7/16" | 2-1/16" | 3-7/16" | 300A128 | ||
| 29/64" | 2-1/8" | 3-9/16" | 300A129 | ||
| 15/32" | 2-1/8" | 3-5/8" | 300A130 | ||
| 31/64" | 2-3/16" | 3-11/16" | 300A131 | ||
| 1/2" | 2-1/4" | 3-3/4" | 300A132 | ||
| No. of Pcs | Description | EDP No. | |||
| 300 Series Screw Machine (Stub) Length Drill Sets | |||||
| 13 | 1/16" - 1/4" BY 64ths | 300A13 | |||
| 21 | 1/16" - 3/8" BY 64ths | 300A21 | |||
| 29 | 1/16" - 1/2" BY 64ths | 300A29 | |||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 380 EDP No. | ||
|
|||||
| Series 380 135° SPLIT POINT / STRAIGHT SHANK | |||||
| 1 | 1-5/16" | 2-7/16" | 380A001 | ||
| 2 | 1-5/16" | 2-7/16" | 380A002 | ||
| 3 | 1-1/4" | 2-3/8" | 380A003 | ||
| 4 | 1-1/4" | 2-3/8" | 380A004 | ||
| 5 | 1-1/4" | 2-3/8" | 380A005 | ||
| 6 | 1-1/4" | 2-3/8" | 380A006 | ||
| 7 | 1-3/16" | 2-1/4" | 380A007 | ||
| 8 | 1-3/16" | 2-1/4" | 380A008 | ||
| 9 | 1-3/16" | 2-1/4" | 380A009 | ||
| 10 | 1-3/16" | 2-1/4" | 380A010 | ||
| 11 | 1-3/16" | 2-1/4" | 380A011 | ||
| 12 | 1-3/16" | 2-1/4" | 380A012 | ||
| 13 | 1-1/8" | 2-3/16" | 380A013 | ||
| 14 | 1-1/8" | 2-3/16" | 380A014 | ||
| 15 | 1-1/8" | 2-3/16" | 380A015 | ||
| 16 | 1-1/8" | 2-3/16" | 380A016 | ||
| 17 | 1-1/8" | 2-3/16" | 380A017 | ||
| 18 | 1-1/16" | 2-1/8" | 380A018 | ||
| 19 | 1-1/16" | 2-1/8" | 380A019 | ||
| 20 | 1-1/16" | 2-1/8" | 380A020 | ||
| 21 | 1-1/16" | 2-1/8" | 380A021 | ||
| 22 | 1-1/16" | 2-1/8" | 380A022 | ||
| 23 | 1" | 2-1/16" | 380A023 | ||
| 24 | 1" | 2-1/16" | 380A024 | ||
| 25 | 1" | 2-1/16" | 380A025 | ||
| 26 | 1" | 2-1/16" | 380A026 | ||
| 27 | 1" | 2-1/16" | 380A027 | ||
| 28 | 15/16" | 1-15/16" | 380A028 | ||
| 29 | 15/16" | 1-15/16" | 380A029 | ||
| 30 | 15/16" | 1-15/16" | 380A030 | ||
| 31 | 7/8" | 1-7/8" | 380A031 | ||
| 32 | 7/8" | 1-7/8" | 380A032 | ||
| 33 | 7/8" | 1-7/8" | 380A033 | ||
| 34 | 7/8" | 1-7/8" | 380A034 | ||
| 35 | 7/8" | 1-7/8" | 380A035 | ||
| 36 | 13/16" | 1-13/16" | 380A036 | ||
| 37 | 13/16" | 1-13/16" | 380A037 | ||
| 38 | 13/16" | 1-13/16" | 380A038 | ||
| 39 | 13/16" | 1-13/16" | 380A039 | ||
| 40 | 13/16" | 1-13/16" | 380A040 | ||
| 41 | 13/16" | 1-13/16" | 380A041 | ||
| 42 | 3/4" | 1-3/4" | 380A042 | ||
| 43 | 3/4" | 1-3/4" | 380A043 | ||
| 44 | 3/4" | 1-3/4" | 380A044 | ||
| 45 | 3/4" | 1-3/4" | 380A045 | ||
| 46 | 3/4" | 1-3/4" | 380A046 | ||
| 47 | 11/16" | 1-11/16" | 380A047 | ||
| 48 | 11/16" | 1-11/16" | 380A048 | ||
| 49 | 11/16" | 1-11/16" | 380A049 | ||
| 50 | 11/16" | 1-11/16" | 380A050 | ||
| 51 | 11/16" | 1-11/16" | 380A051 | ||
| 52 | 11/16" | 1-11/16" | 380A052 | ||
| 53* | 5/8" | 1-5/8" | 380A053 | ||
| 54* | 5/8" | 1-5/8" | 380A054 | ||
| 55* | 5/8" | 1-5/8" | 380A055 | ||
| 56* | 1/2" | 1-3/8" | 380A056 | ||
| 57* | 1/2" | 1-3/8" | 380A057 | ||
| 58* | 1/2" | 1-3/8" | 380A058 | ||
| 59* | 1/2" | 1-3/8" | 380A059 | ||
| 60* | 1/2" | 1-3/8" | 380A060 | ||
