Masonry Drills
|
||||||
|---|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | Shank Size | 1600A EDP No. | ||

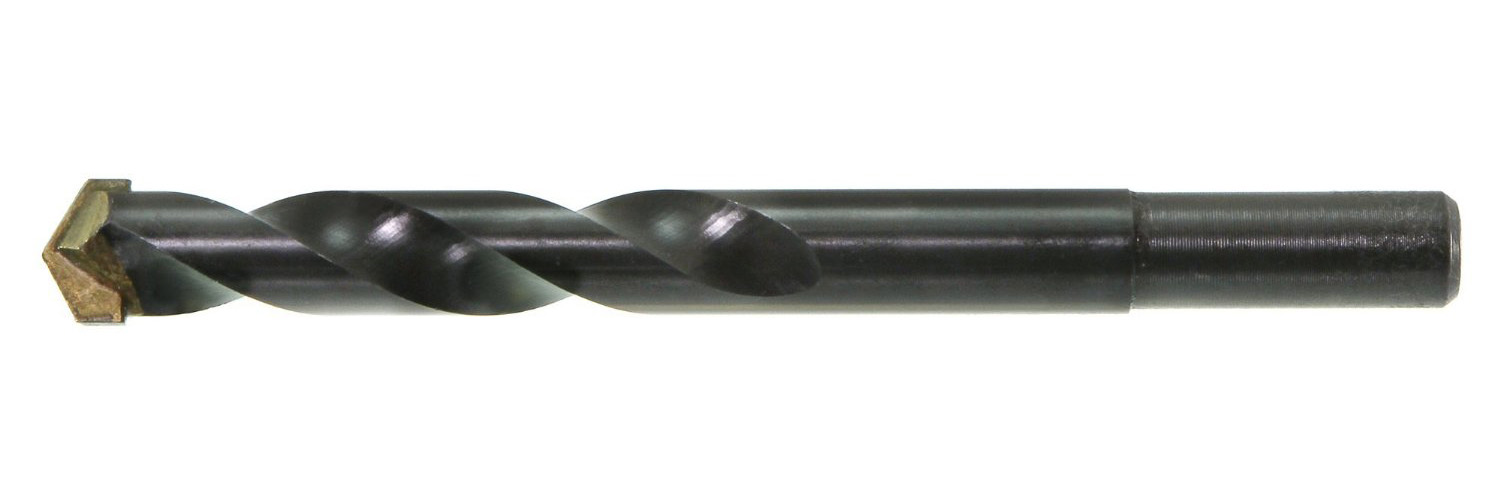

| Series 1600A ROTARY PERCUSSION & HAMMER DRILLING | ||||||
| 1/8" | 1-1/2" | 3" | 1/8" | 160A1083 | ||
| 5/32" | 1-1/2" | 3" | 5/32" | 160A1103 | ||
| 3/16" | 2" | 4" | 3/16" | 160A1124 | ||
| 3/16" | 3-1/2" | 6" | 3/16" | 160A1126 | ||
| 3/16" | 4-3/4" | 8" | 3/16" | 160A1128 | ||
| 7/32" | 2" | 4" | 7/32" | 160A1144 | ||
| 15/64" | 4-3/4" | 8" | 15/64" | 160A1158 | ||
| 1/4" | 2" | 4" | 1/4" | 160A1164 | ||
| 1/4" | 3-1/2" | 6" | 1/4" | 160A1166 | ||
| 1/4" | 6-5/8" | 12" | 1/4" | 160A11612 | ||
| 1/4" | 10" | 16" | 1/4" | 160A11616 | ||
| 1/4" | 18-1/2" | 24" | 1/4" | 160A11624 | ||
| 9/32" | 2" | 4" | 9/32" | 160A1184 | ||
| 5/16" | 2-1/2" | 5" | 1/4" | 160A1205 | ||
| 5/16" | 3-1/2" | 6" | 1/4" | 160A1206 | ||
| 5/16" | 4-3/4" | 8" | 1/4" | 160A1208 | ||
| 5/16" | 6-5/8" | 12" | 1/4" | 160A12012 | ||
| 5/16" | 10" | 16" | 1/4" | 160A12016 | ||
| 5/16" | 18-1/2" | 24" | 1/4" | 160A12024 | ||
| 11/32" | 2-1/2" | 5" | 1/4" | 160A1225 | ||
| 3/8" | 2-1/2" | 5" | 5/16" | 160A1245 | ||
| 3/8" | 3-1/2" | 6" | 5/16" | 160A1246A | ||
| 3/8" | 4-3/4" | 8" | 5/16" | 160A1248A | ||
| 3/8" | 6-5/8" | 12" | 5/16" | 160A12412A | ||
| 3/8" | 10" | 16" | 5/16" | 160A12416A | ||
| 3/8" | 18-1/2" | 24" | 5/16" | 160A12424A | ||
| 7/16" | 3-1/2" | 6" | 3/8" | 160A1286A | ||
| 15/32" | 4-3/4" | 8" | 3/8" | 160A1308A | ||
| 15/32" | 10" | 16" | 3/8" | 160A13016A | ||
| 15/32" | 18-1/2" | 24" | 3/8" | 160A13024A | ||
| 1/2" | 3-1/2" | 6" | 3/8" | 160A1326A | ||
| 1/2" | 4-3/4" | 8" | 3/8" | 160A1328A | ||
| 1/2" | 6-5/8" | 12" | 3/8" | 160A13212A | ||
| 1/2" | 10" | 16" | 3/8" | 160A13216A | ||
| 1/2" | 18-1/2" | 24" | 3/8" | 160A13224A | ||
| 9/16" | 3-1/2" | 6" | 3/8" | 160A1366A | ||
| 9/16" | 4-3/4" | 8" | 3/8" | 160A1368A | ||
| 9/16" | 10" | 16" | 3/8" | 160A13616B | ||
| 9/16" | 18-1/2" | 24" | 3/8" | 160A13624B | ||
| 19/32" | 3-1/2" | 6" | 1/2" | 160A1386B | ||
| 5/8" | 3-1/2" | 6" | 1/2" | 160A1406B | ||
| 5/8" | 4-3/4" | 8" | 1/2" | 160A1408A | ||
| 5/8" | 6-5/8" | 12" | 1/2" | 160A14012A | ||
| 5/8" | 10" | 16" | 1/2" | 160A14016B | ||
| 5/8" | 18-1/2" | 24" | 1/2" | 160A14024B | ||
| 23/32" | 3-1/2" | 6" | 1/2" | 160A1466B | ||
| 3/4" | 4" | 6-1/2" | 1/2" | 160A1486B | ||
| 3/4" | 6-5/8" | 12" | 1/2" | 160A14812B | ||
| 3/4" | 10" | 16" | 1/2" | 160A14816B | ||
| 3/4" | 18-1/2" | 24" | 1/2" | 160A14824B | ||
| 25/32" | 3-1/2" | 6" | 1/2" | 160A1506B | ||
| 25/32" | 10" | 16" | 1/2" | 160A15016B | ||
| 25/32" | 18-1/2" | 24" | 1/2" | 160A15024B | ||
| 7/8" | 4" | 6-1/2" | 1/2" | 160A1566B | ||
| 7/8" | 6-5/8" | 12" | 1/2" | 160A15612B | ||
| 7/8" | 10" | 16" | 1/2" | 160A15616B | ||
| 7/8" | 18-1/2" | 24" | 1/2" | 160A15624B | ||
| 1" | 4" | 6-1/2" | 1/2" | 160A1646B | ||
| 1" | 6-5/8" | 12" | 1/2" | 160A16412B | ||
| 1" | 10" | 16" | 1/2" | 160A16416B | ||
| 1" | 18-1/2" | 24" | 1/2" | 160A16424B | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1700A EDP No. | ||

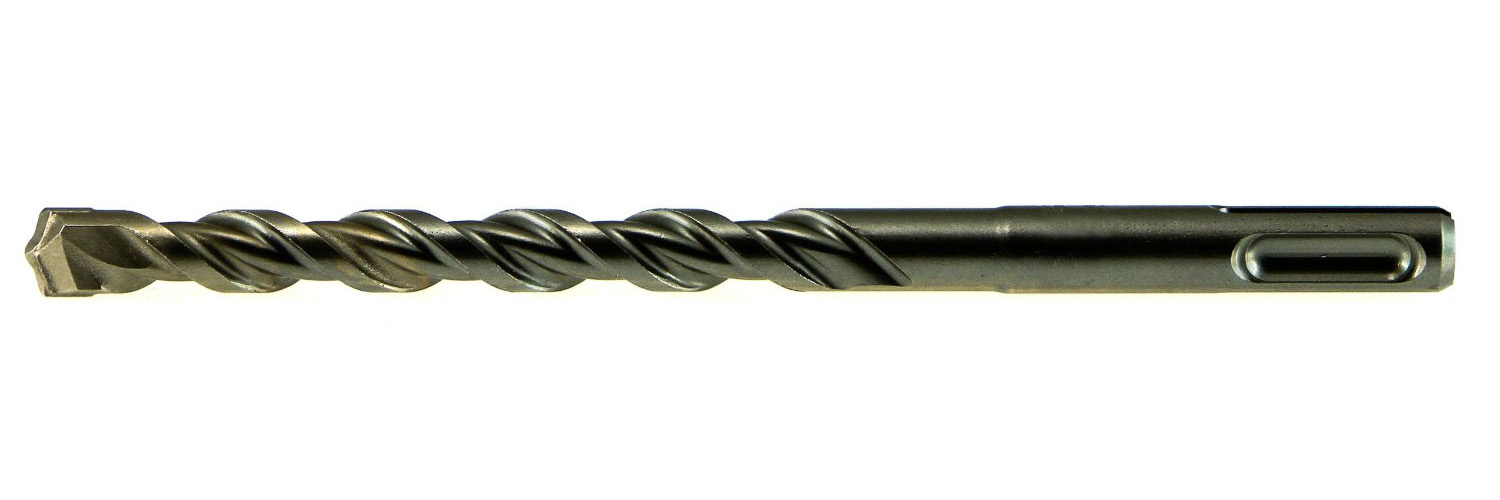

| Series 1700A SDS PLUS | |||||
| 5/32" | 2" | 4-1/2" | 170A1104 | ||
| 5/32" | 4" | 6-1/4" | 170A1106 | ||
| 3/16" | 2" | 4-1/4" | 170A1124 | ||
| 3/16" | 4" | 6-1/4" | 170A1126 | ||
| 3/16" | 6" | 8-1/4" | 170A1128 | ||
| 3/16" | 10" | 12" | 170A11212 | ||
| 7/32" | 2" | 4-1/4" | 170A1144 | ||
| 7/32" | 4" | 6-1/4" | 170A1146 | ||
| 7/32" | 6" | 8-1/4" | 170A1148 | ||
| 7/32" | 14" | 16" | 170A11416 | ||
| 1/4" | 2" | 4-1/4" | 170A1164 | ||
| 1/4" | 4" | 6-1/4" | 170A1166 | ||
| 1/4" | 6" | 8-1/4" | 170A1168 | ||
| 1/4" | 9" | 11" | 170A11612 | ||
| 1/4" | 18" | 20" | 170A11618 | ||
| 9/32" | 6" | 8" | 170A1188 | ||
| 5/16" | 4" | 6-1/4" | 170A1206 | ||
| 5/16" | 6" | 8-1/4" | 170A1208 | ||
| 5/16" | 10" | 12" | 170A12012 | ||
| 3/8" | 4" | 6-1/4" | 170A1246 | ||
| 3/8" | 6" | 8-1/4" | 170A1248 | ||
| 3/8" | 10" | 12-1/4" | 170A12412 | ||
| 3/8" | 16" | 18" | 170A12418 | ||
| 3/8" | 22" | 24" | 170A12424 | ||
| 7/16" | 4" | 6-1/4" | 170A1286 | ||
| 7/16" | 10" | 12-1/4" | 170A12812 | ||
| 1/2" | 4" | 6-1/4" | 170A1326 | ||
| 1/2" | 8" | 10-1/4" | 170A13210 | ||
| 1/2" | 10" | 12-1/4" | 170A13212 | ||
| 1/2" | 16" | 18" | 170A13218 | ||
| 1/2" | 22" | 24" | 170A13224 | ||
| 9/16" | 4" | 6-1/4" | 170A1366 | ||
| 9/16" | 10" | 12-1/4" | 170A13612 | ||
| 9/16" | 16" | 18" | 170A13618 | ||
| 5/8" | 4" | 6-1/4" | 170A1406 | ||
| 5/8" | 6" | 8" | 170A1408 | ||
| 5/8" | 10" | 12" | 170A14012 | ||
| 5/8" | 16" | 18" | 170A14018 | ||
| 5/8" | 22" | 24" | 170A14024 | ||
| 11/16" | 6" | 8" | 170A1448 | ||
| 3/4" | 6" | 8" | 170A1488 | ||
| 3/4" | 10" | 12" | 170A14812 | ||
| 3/4" | 16" | 18" | 170A14818 | ||
| 27/32" | 6" | 8" | 170A1548 | ||
| 7/8" | 8" | 10" | 170A15610 | ||
| 7/8" | 10" | 12-1/4" | 170A15612 | ||
| 7/8" | 16" | 18" | 170A15618 | ||
| 1" | 10" | 12" | 170A16412 | ||
| 1" | 16" | 18" | 170A16418 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1700B EDP No. | ||
| Series 1700B (Bulk Packaging) SDS PLUS | |||||
| 5/32" | 2" | 4-1/4" | 170B1104 | ||
| 5/32" | 4" | 6-1/4" | 170B1106 | ||
| 3/16" | 2" | 4-1/4" | 170B1124 | ||
| 3/16" | 4" | 6-1/4" | 170B1126 | ||
| 3/16" | 6" | 8-1/4" | 170B1128 | ||
| 7/32" | 14" | 16" | 170B11416 | ||
| 7/32" | 4" | 6-1/4" | 170B1146 | ||
| 7/32" | 6" | 8-1/4" | 170B1148 | ||
| 1/4" | 2" | 4-1/4" | 170B1164 | ||
| 1/4" | 4" | 6-1/4" | 170B1166 | ||
| 1/4" | 6" | 8-1/4" | 170B1168 | ||
| 5/16" | 4" | 6-1/4" | 170B1206 | ||
| 3/8" | 4" | 6-1/4" | 170B1246 | ||
| 3/8" | 6" | 8-1/4" | 170B1248 | ||
| 1/2" | 10" | 12" | 170B13212 | ||
| 5/8" | 6" | 8" | 170B1408 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1730 EDP No. | ||

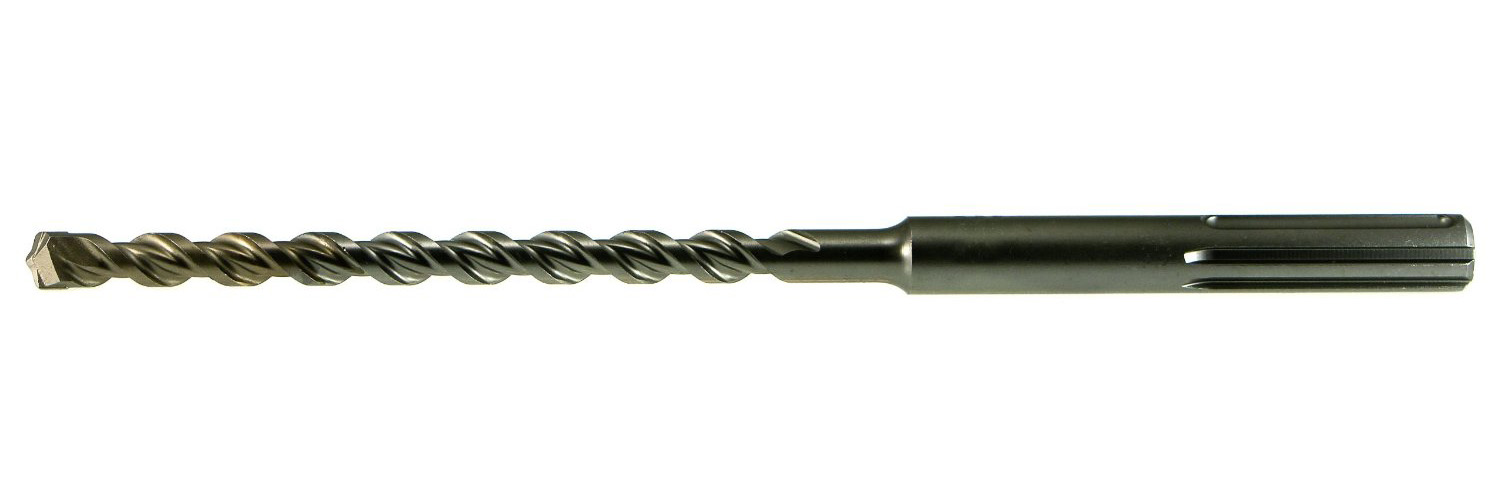

| Series 1730 SDS MAX | |||||
| 1/2" | 7-1/2" | 13" | 173F13213 | ||
| 1/2" | 15-1/2" | 21" | 173F13221 | ||
| 9/16" | 7-1/2" | 13" | 173F13613 | ||
| 9/16" | 15-1/2" | 21" | 173F13621 | ||
| 5/8" | 8" | 13" | 173F14013 | ||
| 5/8" | 16" | 21" | 173F14021 | ||
| 5/8" | 31" | 36" | 173F14036 | ||
| 3/4" | 8" | 13" | 173F14813 | ||
| 3/4" | 16" | 21" | 173F14821 | ||
| 3/4" | 31" | 36" | 173F14836 | ||
| 7/8" | 8" | 13" | 173F15613 | ||
| 7/8" | 16" | 21" | 173F15621 | ||
| 1" | 8" | 13" | 173F16413 | ||
| 1" | 16" | 21" | 173F16421 | ||
| 1" | 31" | 36" | 173F16436 | ||
| 1-1/8" | 8" | 13" | 173F20813 | ||
| 1-1/8" | 16" | 21" | 173F20821 | ||
| 1-1/4" | 10" | 15" | 173F21615 | ||
| 1-1/4" | 18" | 23" | 173F21623 | ||
| 1-1/4" | 31" | 36" | 173F21636 | ||
| 1-3/8" | 18" | 23" | 173F22423 | ||
| 1-1/2" | 18" | 23" | 173F23223 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1820 EDP No. | ||

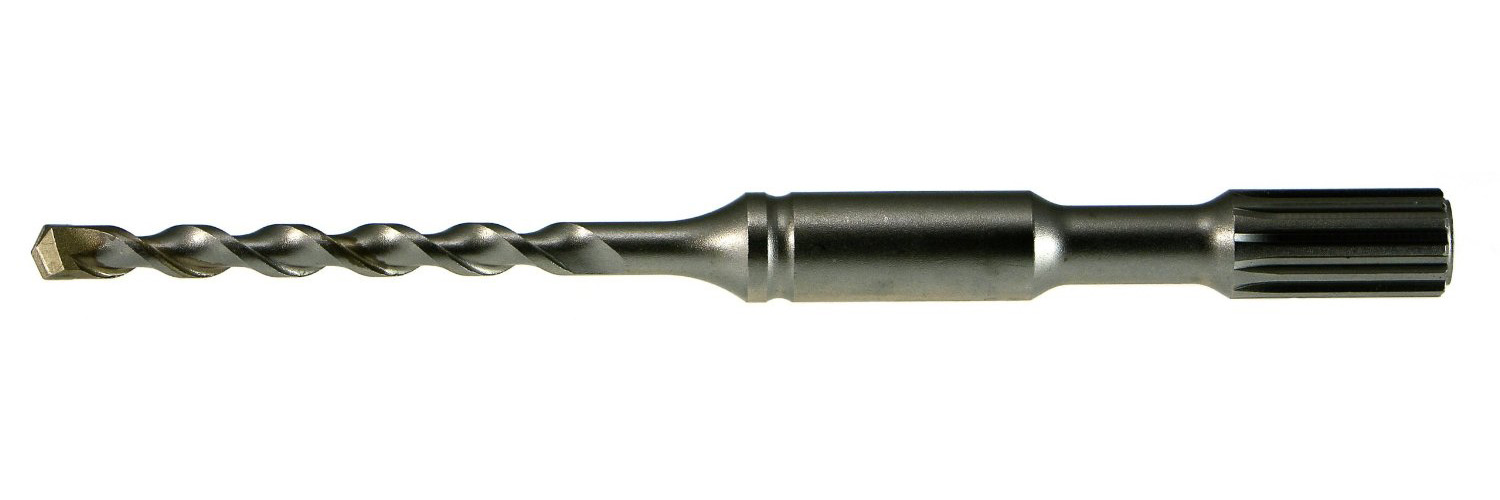

| Series 1820 SPLINE SHANK | |||||
| 3/8" | 5" | 10" | 182F12410 | ||
| 3/8" | 8" | 13" | 182F12413 | ||
| 3/8" | 11" | 16" | 182F12416 | ||
| 7/16" | 8" | 13" | 182F12813 | ||
| 1/2" | 5" | 10" | 182F13210 | ||
| 1/2" | 8" | 13" | 182F13213 | ||
| 1/2" | 11" | 16" | 182F13216 | ||
| 1/2" | 17" | 22" | 182F13223 | ||
| 1/2" | 24" | 29" | 182F13227 | ||
| 1/2" | 31" | 36" | 182F13236 | ||
| 9/16" | 8" | 13" | 182F13613 | ||
| 5/8" | 5" | 10" | 182F14010 | ||
| 5/8" | 8" | 13" | 182F14013 | ||
| 5/8" | 11" | 16" | 182F14016 | ||
| 5/8" | 17" | 22" | 182F14023 | ||
| 5/8" | 24" | 29" | 182F14027 | ||
| 5/8" | 31" | 36" | 182F14036 | ||
| 3/4" | 8" | 13" | 182F14813 | ||
| 3/4" | 11" | 16" | 182F14816 | ||
| 3/4" | 17" | 22" | 182F14823 | ||
| 3/4" | 31" | 36" | 182F14836 | ||
| 7/8" | 11" | 16" | 182F15616 | ||
| 7/8" | 17" | 22" | 182F15623 | ||
| 1" | 11" | 16" | 182F16416 | ||
| 1" | 17" | 22" | 182F16423 | ||
| 1" | 31" | 36" | 182F16436 | ||
| 1-1/8" | 11" | 16" | 182F20816 | ||
| 1-1/8" | 17" | 22" | 182F20823 | ||
| 1-1/4" | 11" | 16" | 182F21616 | ||
| 1-1/4" | 17" | 22" | 182F21623 | ||
| 1-1/4" | 31" | 36" | 182F21636 | ||
| 1-3/8" | 11" | 16" | 182F22416 | ||
| 1-3/8" | 17" | 22" | 182F22423 | ||
| 1-1/2" | 17" | 22" | 182F23223 | ||
| 1-3/4" | 17" | 22" | 182F24824 | ||
| 2" | 17" | 22" | 182F26424 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1830 EDP No. | ||

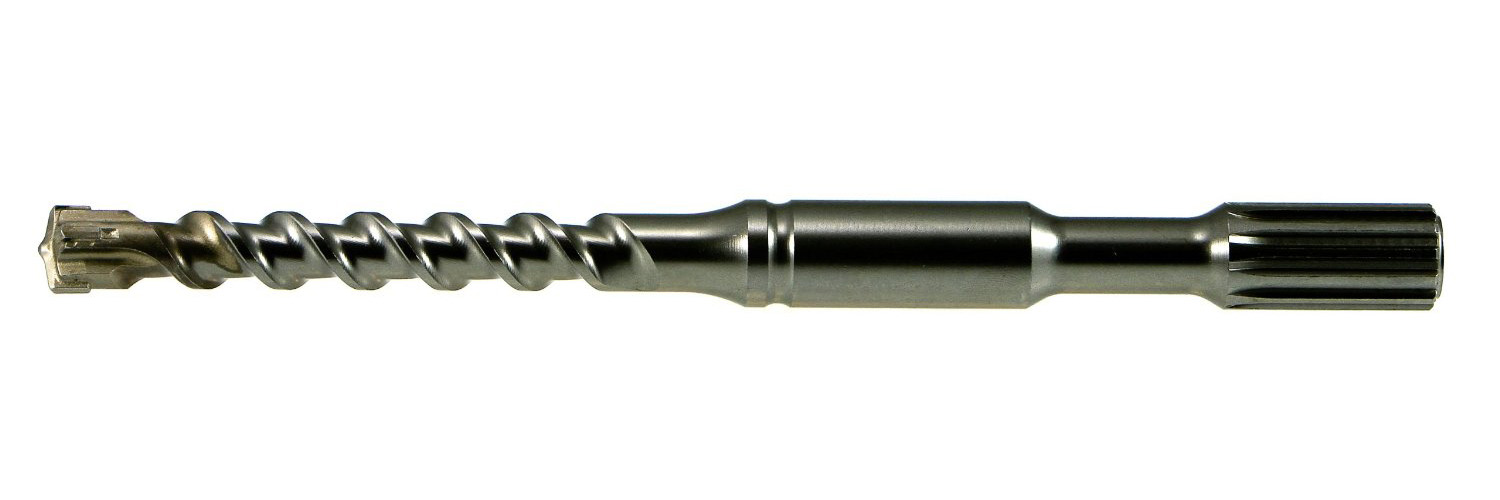

| Series 1830 BOOSTER - SPLINE DRIVE SHANK | |||||
| 5/8" | 5" | 10" | 183F14010 | ||
| 5/8" | 11" | 16" | 183F14016 | ||
| 5/8" | 17" | 22" | 183F14023 | ||
| 5/8" | 24" | 29" | 183F14027 | ||
| 5/8" | 31" | 36" | 183F14036 | ||
| 3/4" | 5" | 10" | 183F14810 | ||
| 3/4" | 11" | 16" | 183F14816 | ||
| 3/4" | 17" | 22" | 183F14823 | ||
| 3/4" | 31" | 36" | 183F14836 | ||
| 7/8" | 11" | 16" | 183F15616 | ||
| 7/8" | 17" | 22" | 183F15623 | ||
| 1" | 11" | 16" | 183F16416 | ||
| 1" | 17" | 22" | 183F16423 | ||
| 1" | 31" | 36" | 183F16436 | ||
| 1-1/8" | 11" | 16" | 183F20816 | ||
| 1-1/8" | 17" | 22" | 183F20823 | ||
| 1-1/4" | 11" | 16" | 183F21616 | ||
| 1-1/4" | 17" | 22" | 183F21623 | ||
| 1-1/4" | 31" | 36" | 183F21636 | ||
| 1-3/8" | 17" | 22" | 183F22423 | ||
| 1-1/2" | 17" | 22" | 183F23223 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1720 EDP No. | ||

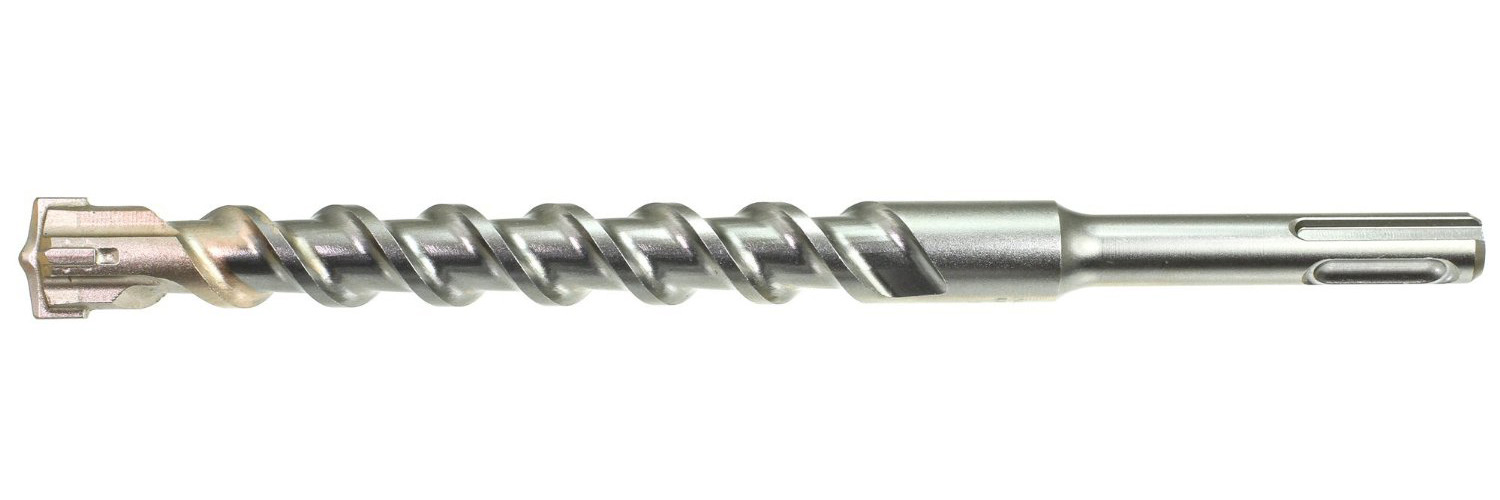

| Series 1720 BOOSTER - SDS PLUS | |||||
| 3/16" | 2" | 4-1/4" | 172F1124 | ||
| 3/16" | 4" | 6-1/4" | 172F1126 | ||
| 3/16" | 6" | 8-1/4" | 172F1128 | ||
| 3/16" | 8" | 10" | 172F11210 | ||
| 3/16" | 10" | 12" | 172F11212 | ||
| 1/4" | 2" | 4-1/4" | 172F1164 | ||
| 1/4" | 4" | 6-1/4" | 172F1166 | ||
| 1/4" | 6" | 8-1/4" | 172F1168 | ||
| 1/4" | 8' | 10" | 172F11610 | ||
| 1/4" | 10" | 12' | 172F11612 | ||
| 5/16" | 4" | 6-1/4" | 172F1206 | ||
| 5/16" | 10" | 12" | 172F12012 | ||
| 5/16" | 16" | 18" | 172F12018 | ||
| 3/8" | 4" | 6-1/4" | 172F1246 | ||
| 3/8" | 10" | 12-1/4" | 172F12412 | ||
| 3/8" | 16" | 18" | 172F12418 | ||
| 7/16" | 4" | 6" | 172F1286 | ||
| 7/16" | 10" | 12" | 172F12812 | ||
| 7/16" | 16" | 18" | 172F12818 | ||
| 1/2" | 4" | 6-1/4" | 172F1326 | ||
| 1/2" | 10" | 12-1/4" | 172F13212 | ||
| 1/2" | 16" | 18" | 172F13218 | ||
| 9/16" | 4" | 6" | 172F1366 | ||
| 9/16" | 10" | 12" | 172F13612 | ||
| 9/16" | 16" | 18" | 172F13618 | ||
| 5/8" | 8" | 10" | 172F14010 | ||
| 5/8" | 10" | 12" | 172F14012 | ||
| 3/4" | 8" | 10" | 172F14810 | ||
| 3/4" | 10" | 12" | 172F14812 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1720 Bulk EDP No. | ||
| Series 1720 Bulk | |||||
| 3/16" | 4" | 6-1/4" | 172B1126 | ||
| 1/4" | 4" | 6-1/4" | 172B1166 | ||
| 5/16" | 4" | 6-1/4" | 172B1206 | ||
| 3/8" | 4" | 6-1/4" | 172B1246 | ||
| 1/2" | 4" | 6-1/4" | 172B1326 | ||
|
|||||
|---|---|---|---|---|---|
| Size | Flute Length | Overall Length | 1740 EDP No. | ||
| Series 1740 BOOSTER - SDS MAX | |||||
| 5/8" | 7-1/2" | 13" | 174F14013 | ||
| 5/8" | 15-1/2" | 21" | 174F14021 | ||
| 5/8" | 31" | 36" | 174F14036 | ||
| 3/4" | 7-1/2" | 13" | 174F14813 | ||
| 3/4" | 17" | 21" | 174F14821 | ||
| 3/4" | 31" | 36" | 174F14836 | ||
| 7/8" | 8" | 13" | 174F15613 | ||
| 7/8" | 17" | 21" | 174F15621 | ||
| 1" | 8" | 13" | 174F16413 | ||
| 1" | 17" | 21" | 174F16421 | ||
| 1" | 31" | 36" | 174F16436 | ||
| 1-1/8" | 12" | 17" | 174F20817 | ||
| 1-1/8" | 17" | 21" | 174F20821 | ||
| 1-1/4" | 12" | 17" | 174F21617 | ||
| 1-1/4" | 18" | 23" | 174F21623 | ||
| 1-1/4" | 31" | 36" | 174F21636 | ||
| 1-3/8" | 18" | 23" | 174F22423 | ||
| 1-1/2" | 18" | 23" | 174F23223 | ||
