Hand Taps

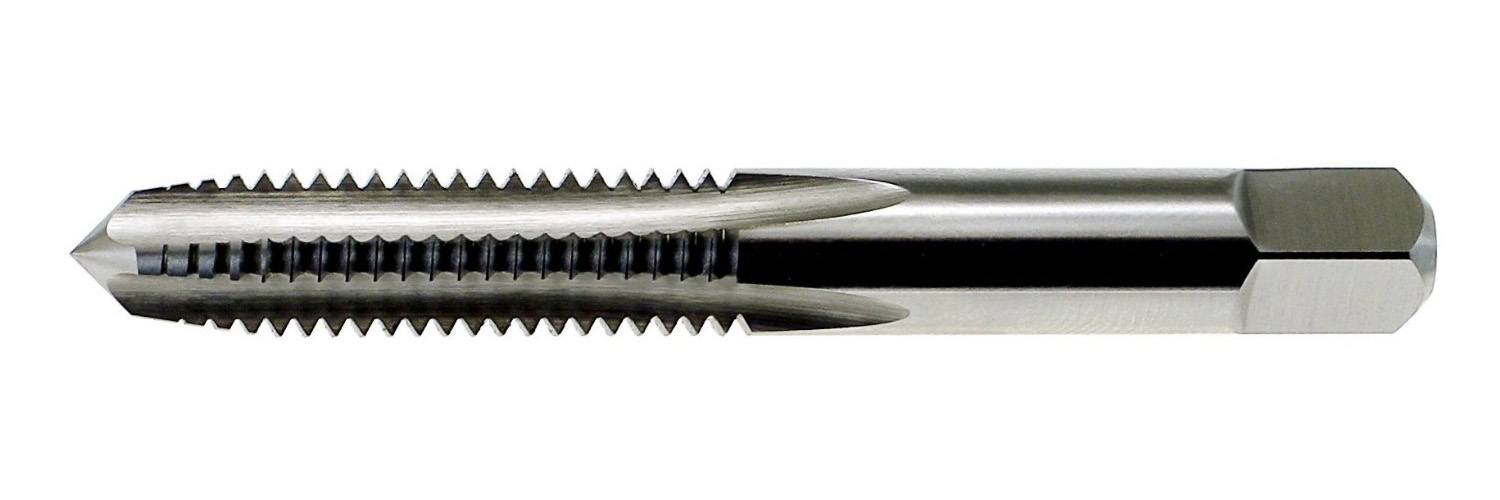

Left Hand Taps - 2300

HIGH SPEED STEEL - Machine Screw & Fractional / Bright
PACKAGING:
#6 thru 1/4" - 12 per pack
5/16" thru 1/2" - 6 per pack
9/16" thru 1" - 3 per pack
1-1/8" and up - individually packaged
Size NC NF Overall Length No. of Flutes Pitch Dia. Limits 2300 EDP No.
Taper Plug Bottoming
Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.

Taper – 7-10 pitch chamfer length. Starts the thread square with the workpiece
Plug – 3-5 pitch chamfer length. Generally used in through holes
Bottoming – 1-2 pitch chamfer length. Generates the thread to the bottom
Sets – Contains 1 each of Taper, Plug, and Bottoming
2300 TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
6 32 - 2" 4 H3 23A006CT 23A006CP 23A006CB
8 32 - 2-1/8" 4 H3 23A008CT 23A008CP 23A008CB
10 24 - 2-3/8" 4 H3 23A010CT 23A010CP 23A010CB
10 - 32 2-3/8" 4 H3 23A010FT 23A010FP 23A010FB
1/4" 20 - 2-1/2" 4 H3 23A116CT 23A116CP 23A116B
1/4" - 28 2-1/2" 4 H3 23A116FT 23A116FP 23A116FB
5/16" 18 - 2-23/32" 4 H3 23A120CT 23A120CP 23A120CB
5/16" - 24 2-23/32" 4 H3 23A120FT 23A120FP 23A120FB
3/8" 16 - 2-5/16" 4 H3 23A124CT 23A124CP 23A124CB
3/8" - 24 2-5/16" 4 H3 23A124FT 23A124FP 23A124FB
7/16" 14 - 3-5/32" 4 H3 23A128CT 23A128CP 23A128CB
7/16" - 20- 3-5/32" 4 H3 23A128FT 23A128FP 23A128FB
1/2" 13 - 3-3/8" 4 H3 23A132CT 23A132CP 23A132CB
1/2" - 20 3-3/8" 4 H3 23A132FT 23A132FP 23A132FB
9/16" 12 - 3-19/32" 4 H3 23A136CT 23A136CP 23A136CB
9/16" - 18 3-19/32" 4 H3 23A136FT 23A136FP 23A136FB
5/8" 11 - 3-3/16" 4 H3 23A140CT 23A140CP 23A140CB
5/8" - 18 3-3/16" 4 H3 23A140FT 23A140FP 23A140FB
3/4" 10 - 4-1/4" 4 H3 23A148CT 23A148CP 23A148CB
3/4" - 16 4-1/4" 4 H3 23A148FT 23A148FP 23A148FB
7/8" 9 - 4-11/16" 4 H4 23A156CT 23A156CP 23A156CB
7/8" - 14 4-11/16" 4 H4 23A156FT 23A156FP 23A156FB
1" 8 - 5-1/8" 4 H4 23A164CT 23A164CP 23A164CB
1" - 12 5-1/8" 4 H4 23A164FT 23A164FP 23A164FB
1" - 14 5-1/8" 4 H4 23A164ST 23A164SP 23A164SB
1-1/8" 7 - 5-7/16" 4 H4 23A208CT 23A208CP 23A208CB
1-1/8" - 12 5-7/16" 4 H4 23A208FT 23A208FP 23A208FB
1-1/4" 7 - 5-3/4" 4 H4 23A216CT 23A216CP 23A216CB
1-1/4" - 12 5-3/4" 6 H4 23A216FT 23A216FP 23A216FB
1-3/8" 6 - 6" 4 H4 23A224CT 23A224CP 23A224CB
1-3/8" - 12 6" 6 H4 23A224FT 23A224FP 23A224FB
1-1/2" 6 - 6-1/4" 4 H4 23A232CT 23A232CP 23A232CB
1-1/2" - 12 6-1/4" 6 H4 23A232FT 23A232FP 23A232FB

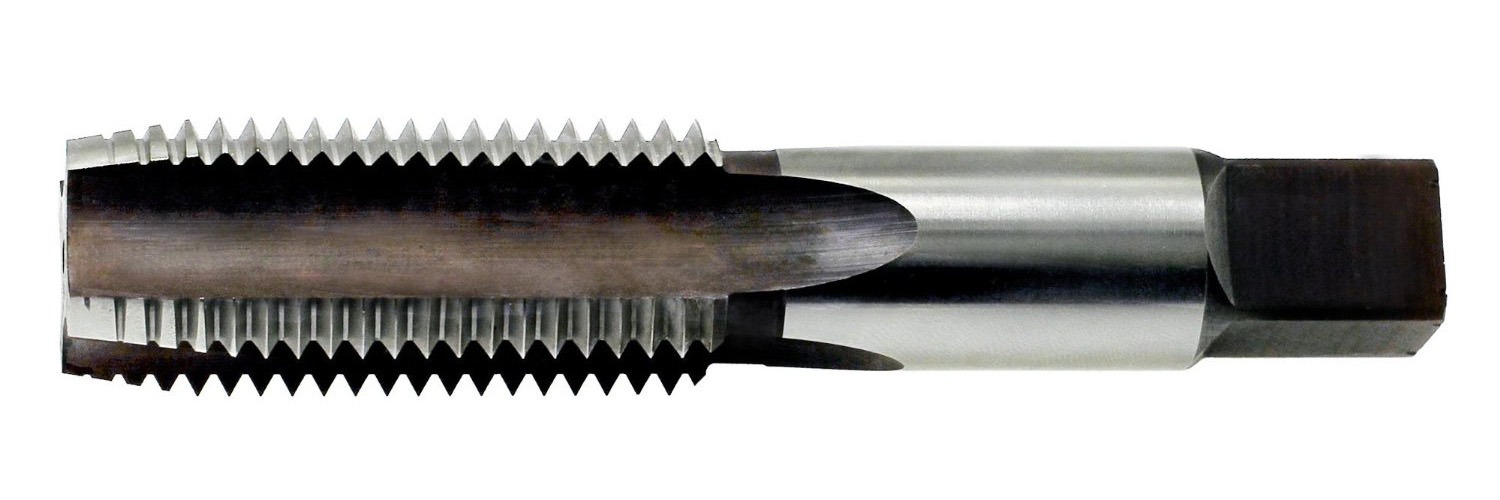

8-Pitch Hand Taps - 2500

HIGH SPEED STEEL - Fractional / Bright
PACKAGING: All sizes are individually packaged
Size NS No. of Flutes 2500 EDP No.
Taper Plug Bottoming
Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.

Taper – 7-10 pitch chamfer length. Starts the thread square with the workpiece
Plug – 3-5 pitch chamfer length. Generally used in through holes
Bottoming – 1-2 pitch chamfer length. Generates the thread to the bottom
2500 TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
1-1/8" 8 4 25A208T 25A208P 25A208B
1-1/4" 8 4 25A216T 25A216P 25A216B
1-3/8" 8 4 25A224T 25A224P 25A224B
1-1/2" 8 4 25A232T 25A232P 25A232B
1-5/8" 8 6 25A240T 25A240P 25A240B
1-3/4" 8 6 25A248T 25A248P 25A248B
1-7/8" 8 6 25A256T 25A256P 25A256B
2" 8 6 25A264T 25A264P 25A264B
2-1/8" 8 6 25A308T 25A308P 25A308B
2-1/4" 8 6 25A316T 25A316P 25A316B
2-3/8" 8 6 25A324T 25A324P 25A324B
2-1/2" 8 6 25A332T 25A332P 25A332B
2-5/8" 8 6 25A340T 25A340P 25A340B
2-3/4" 8 6 25A348T 25A348P 25A348B
2-7/8" 8 6 25A356T 25A356P 25A356B
3" 8 6 25A364T 25A364P 25A364B
3-1/4" 8 6 25A416T 25A416P 25A416B
3-1/2" 8 6 25A432T 25A432P 25A432B
3-3/4" 8 6 25A448T 25A448P 25A448B
4" 8 8 25A464T 25A464P 25A464B
