Hand Taps

Hand Taps - 2800

HIGH SPEED STEEL - Metric / Bright
PACKAGING:
1.6 mm thru 6.3 mm - 12 per pack
7 mm thru 12 mm - 6 per pack
14 mm thru 27 mm - 3 per pack
30 mm and up - individually packaged
Size
(mm)		 Pitch Dia (mm) No. of Flutes Dia. Limits 2800N EDP No.
Taper Plug Bottoming Sets

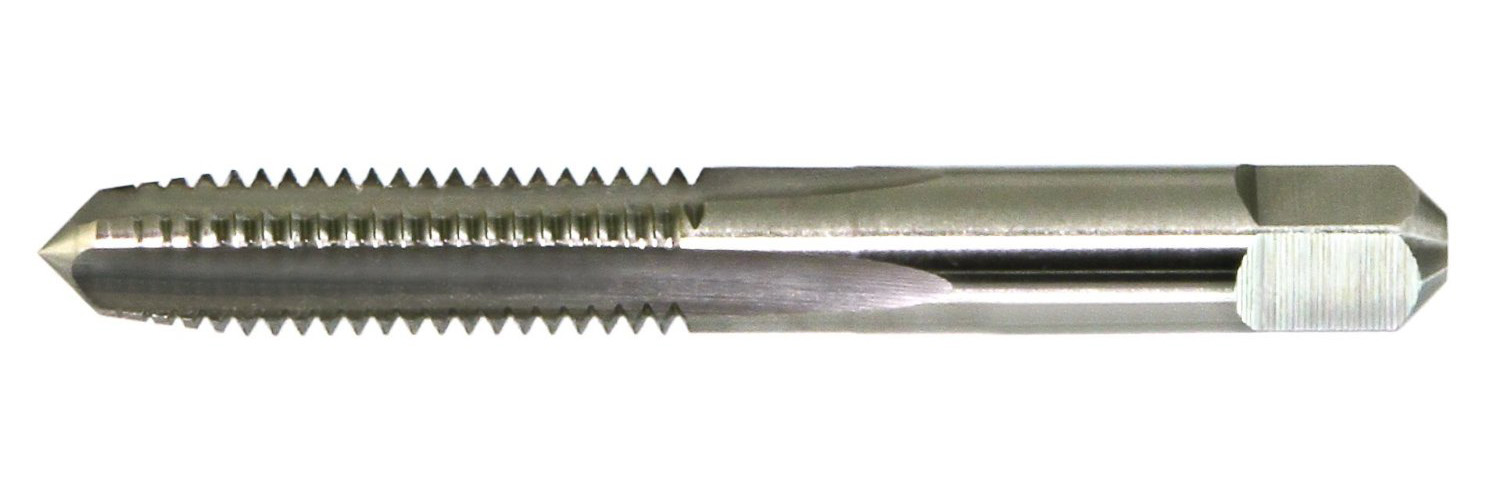

Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.

Taper – 7-10 pitch chamfer length. Starts the thread square with the workpiece
Plug – 3-5 pitch chamfer length. Generally used in through holes
Bottoming – 1-2 pitch chamfer length. Generates the thread to the bottom
Sets – Contains 1 each of Taper, Plug, and Bottoming
2800 TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
1.6 0.35 2 D3 28A016AT 28A016AP 28A016AB 28A016AS
1.8 0.35 2 D3 28A018AT 28A018AP 28A018AB 28A018AS
2 0.40 3 D3 28A020AT 28A020AP 28A020AB 28A020AS
2.2 0.45 3 D3 28A022AT 28A022AP 28A022AB 28A022AS
2.5 0.45 3 D3 28A025AT 28A025AP 28A025AB 28A025AS
3 0.50 3 D3 28A030AT 28A030AP 28A030AB 28A030AS
3.5 0.60 3 D4 28A035AT 28A035AP 28A035AB 28A035AS
4 0.70 4 D4 28A040AT 28A040AP 28A040AB 28A040AS
4.5 0.75 4 D4 28A045AT 28A045AP 28A045AB 28A045AS
5 0.80 4 D4 28A050AT 28A050AP 28A050AB 28A050AS
6 1.0 4 D5 28A060AT 28A060AP 28A060AB 28A060AS
6.3 1.0 4 D5 28A063AT 28A063AP 28A063AB 28A063AS
7 1.0 4 D5 28A070AT 28A070AP 28A070AB 28A070AS
8 1.0 4 D5 28A080BT 28A080BP 28A080BB 28A080BS
8 1.25 4 D5 28A080AT 28A080AP 28A080AB 28A080AS
10 1.25 4 D5 28A100BT 28A100BP 28A100BB 28A100BS
10 1.5 4 D5 28A100AT 28A100AP 28A100AB 28A100AS
12 1.25 4 D5 28A120CT 28A120CP 28A120CB 28A120CS
12 1.75 4 D6 28A120AT 28A120AP 28A120AB 28A120AS
14 1.5 4 D6 28A140BT 28A140BP 28A140BB 28A140BS
14 2 4 D7 28A140AT 28A140AP 28A140AB 28A140AS
16 1.5 4 D6 28A160BT 28A160BP 28A160BB 28A160BS
16 2 4 D7 28A160AT 28A160AP 28A160AB 28A160AS
18 1.5 4 D6 28A180DT 28A180DP 28A180DB 28A180DS
18 2 4 D6 28A180CT 28A180CP 28A180CB 28A180CS
18 2.5 4 D7 28A180AT 28A180AP 28A180AB 28A180AS
20 1.5 4 D6 28A200BT 28A200BP 28A200BB 28A200BS
20 2.5 4 D7 28A200AT 28A200AP 28A200AB 28A200AS
22 1.5 4 D6 28A220BT 28A220BP 28A220BB 28A220BS
22 2.5 4 D7 28A220AT 28A220AP 28A220AB 28A220AS
24 2 4 D7 28A240BT 28A240BP 28A240BB 28A240BS
24 3 4 D8 28A240AT 28A240AP 28A240AB 28A240AS
27 2 4 D7 28A270BT 28A270BP 28A270BB 28A270BS
27 3 4 D8 28A270AT 28A270AP 28A270AB 28A270AS
30 2 4 D7 28A300BT 28A300BP 28A300BB 28A300BS
30 3.5 4 D9 28A300AT 28A300AP 28A300AB 28A300AS
33 2 4 D7 28A330BT 28A330BP 28A330BB 28A330BS
33 3.5 4 D9 28A330AT 28A330AP 28A330AB 28A330AS
36 3 4 D8 28A360BT 28A360BP 28A360BB 28A360BS
36 4 4 D9 28A360AT 28A360AP 28A360AB 28A360AS
39 3 6 D8 28A390BT 28A390BP 28A390BB 28A390BS
39 4 6 D9 28A390AT 28A390AP 28A390AB 28A390AS


Hand Taps, Pulley Style

HIGH SPEED STEEL - Fractional / Bright & Black
PACKAGING: All sizes are individually packaged.
Size NC Flute Length Overall Length 2400 EDP No.
Plug
Pulley taps are used for tapping the hubs of pulleys for oil caps or set screws. The long shank is also ideal for reaching holes inaccessible with standard length taps. The thread length is the same length as a standard tap.
2400 PLUG / THROUGH OR BLIND HOLE
1/4" 20 1" 6" 24A116C6
1/4" 20 1" 8" 24A116C8
5/16" 18 1-1/8" 6" 24A120C6
5/16" 18 1-1/8" 8" 24A120C8
3/8" 16 1-1/4" 10" 24A124C10
3/8" 16 1-1/4" 6" 24A124C6
3/8" 16 1-1/4" 8" 24A124C8
7/16" 14 1-7/16" 6" 24A128C6
7/16" 14 1-7/16" 8" 24A128C8
1/2" 13 1-21/32" 10" 24A132C10
1/2" 13 1-21/32" 12" 24A132C12
1/2" 13 1-21/32" 6" 24A132C6
1/2" 13 1-21/32" 8" 24A132C8
5/8" 11 1-13/16" 10" 24A140C10
5/8" 11 1-13/16" 12" 24A140C12
5/8" 11 1-13/16" 6" 24A140C6
5/8" 11 1-13/16" 8" 24A140C8
3/4" 10 2" 10" 24A148C10
3/4" 10 2" 12" 24A148C12


Hand Taps, 6" Extension

HIGH SPEED STEEL - Machine Screw & Fractional / Bright & Black
PACKAGING: All sizes are individually packaged.
Size NC NF No. of Flutes 2060 EDP No.
Plug Bottoming

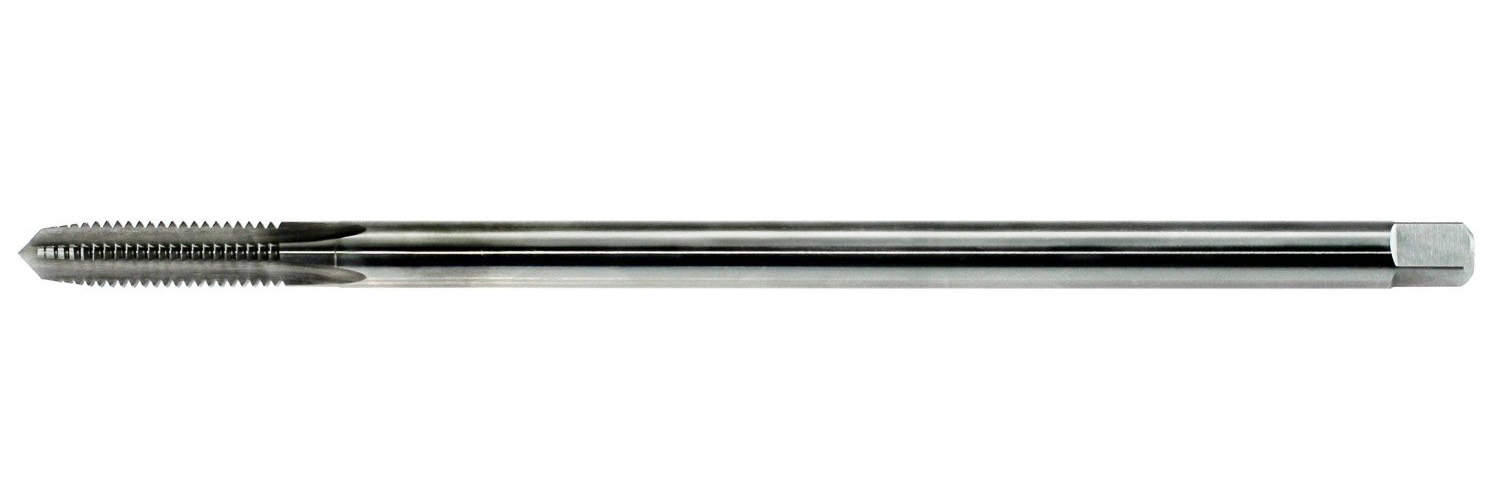

The long shank is ideal for reaching holes inaccessible with standard length taps. The thread length is the same length as a standard tap.
2060 PLUG & BOTTOMING / THROUGH OR BLIND HOLE
6 32 – 3 206A006CP 206A006CB
8 32 – 3 206A008CP 206A008CB
10 24 – 3 206A010CP 206A010CB
10 - 32 3 206A010FP 206A010FB
1/4" 20 – 3 206A116CP 206A116CB
*1/4" 20 – 3 206A116SP –
1/4" – 28 3 206A116FP 206A116FB
5/16" 18 – 3 206A120CP 206A120CB
*5/16" 18 – 3 206A120SP –
5/16" – 24 3 206A120FP 206A120FB
3/8" 16 – 3 206A124CP 206A124CB
*3/8" 16 – 3 206A124SP –
3/8" – 24 3 206A124FP 206A124FB
7/16" 14 – 3 206A128CP 206A128CB
7/16" – 20 3 206A128FP 206A128FB
1/2" 13 – 3 206A132CP 206A132CB
1/2" – 20 3 206A132FP –
