Drilling & Drill Sets

1/2" Shank S & D Drills

High Speed Steel
Fractional / Black & Gold
PACKAGING: All sizes are individually packaged

Size

Flute Length

Overall Length

1000N EDP No.

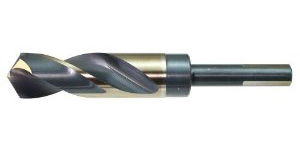

The Nitro 118 degree Split Point S & D drill with Nitride Surface treatment, that gives hard, protective layer to the drill increases hardness without increasing brittleness), which is measuably harder than high speed steel. Body and clearance are black and gold surface treated for maximum lubricity. Recommended for use in stainless steel and other hard metal drilling. The 118 degree split point reduces thrust and eliminates walking at the drill point.

Series 1000N 118° SPLIT POINT / 1/2" REDUCED SHANK / FLATTED SHANK

33/64"

1000N133

17/32"

1000N134

35/64"

1000N135

9/16"

1000N136

37/64"

1000N137

19/32"

1000N138

39/64"

1000N139

5/8"

1000N140

41/64"

1000N141

21/32"

1000N142

43/64"

1000N143

11/16"

1000N144

45/64"

1000N145

23/32"

1000N146

47/64"

1000N147

3/4"

1000N148

49/64"

1000N149

25/32"

1000N150

51/64"

1000N151

13/16"

1000N152

53/64"

1000N153

27/32"

1000N154

55/64"

1000N155

7/8"

1000N156

57/64"

1000N157

29/32"

1000N158

59/64"

1000N159

15/16"

1000N160

61/64"

1000N161

31/32"

1000N162

63/64"

1000N163

1000N164

No. of Pcs	Description	EDP No.
1000N Series 1/2" Shank S&D Drill Sets
5	9/16" - 1" BY 8ths	1000N5
8	9/16" - 1" BY 16ths	1000N8
32	STAND 1/2" - 1" BY 64ths W/DRILLS	1000N32

3/8" Reduced Shank Drills

High Speed Steel
Fractional / Black & Gold
PACKAGING: 6 per pack

Size

Flute Length

Overall Length

1035N EDP No.

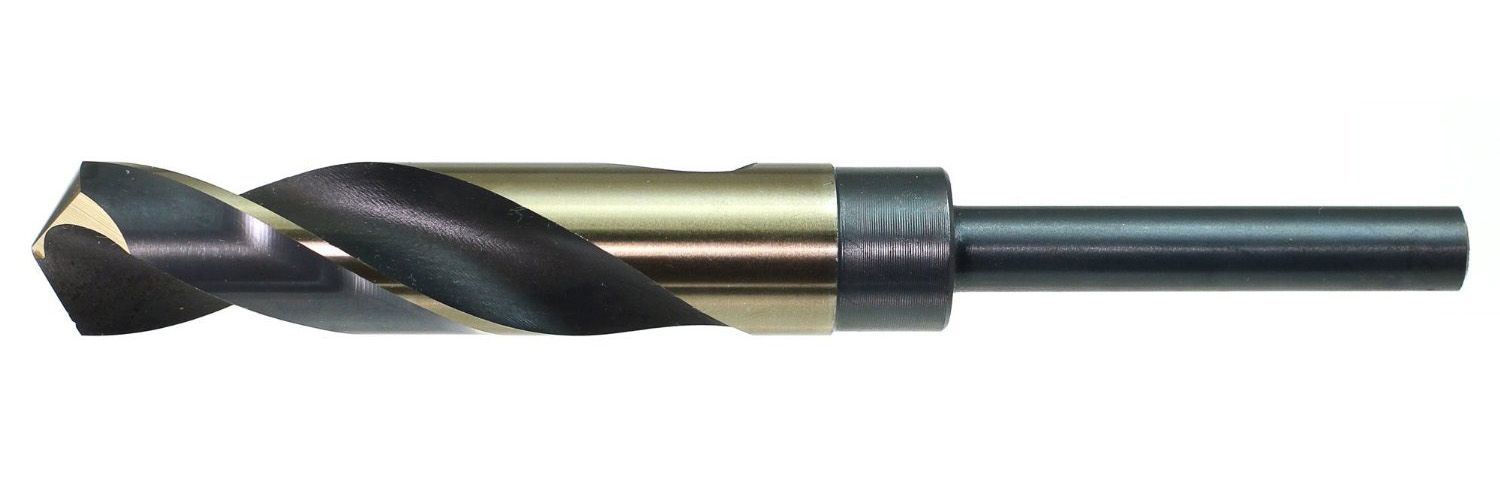

The Nitro Heavy Duty 135 degree Split Point drill with Nitride surface treatment, that give a hard, protective layer to the drill (increases hardness without increasing brittleness), which is measurably harder than high speed steel. Body and clearance are black and gold surface treated for maximum lubricity. Recommended for use in stainless steel and other hard metal drilling.

Series 1035N 135° SPLIT POINT / 3/8" REDUCED SHANK

25/64"

3-3/4"

5-1/8"

1035N125

13/32"

3-7/8"

5-1/4"

1035N126

27/64"

3-15/16"

5-3/8"

1035N127

7/16"

4-1/16"

5-1/2"

1035N128

29/64"

4-3/16"

5-5/8"

1035N129

15/32"

4-5/16"

5-3/4"

1035N130

31/64"

4-3/8"

5-7/8"

1035N131

1/2"

4-1/2"

1035N132

17/32"

4-1/2"

1035N134

9/16"

4-1/2"

1035N136

5/8"

4-1/2"

1035N140

11/16"

4-1/2"

1035N144

3/4"

4-1/2"

1035N148

3/8" Reduced Shank Drills

High Speed Steel
Fractional / Black & Gold
PACKAGING: 6 per pack

Size

Flute Length

Overall Length

1045N EDP No.

The Nitro Heavy Duty 135 degree Split Point drill with Nitride surface treatment, that give a hard, protective layer to the drill (increases hardness without increasing brittleness), which is measurably harder than high speed steel. Body and clearance
are black and gold surface treated for maximum lubricity. Recommended for use in stainless steel and other hard metal drilling.

Series 1045N MECHANICS LENGTH / 135° SPLIT POINT / 3/8" REDUCED SHANK

25/64"

2-3/4"

4-5/16"

1045N125

13/32"

2-13/16"

4-3/8"

1045N126

27/64"

2-7/8"

4-7/16"

1045N127

7/16"

2-15/16"

4-1/2"

1045N128

29/64"

4-5/8"

1045N129

15/32"

3-1/8"

4-3/4"

1045N130

31/64"

3-1/4"

4-7/8"

1045N131

1/2"

3-3/8"

1045N132

No. of Pcs	Description	EDP No.
1035N & 1045N Series Reduced Shank Drill Sets
15	1/16" - 1/2" BY 32nds	1035N15
29	1/16" - 1/2" BY 64ths	1035N29
15	1/16" - 1/2" BY 32nds	1045N15
29	1/16" - 1/2" BY 64ths	1045N29

1/2" Shank S & D Drills

High Speed Steel
Fractional / Bright & Black
PACKAGING: All sizes are individually packaged

Size

Flute Length

Overall Length

1000A EDP No.

1000F EDP No.

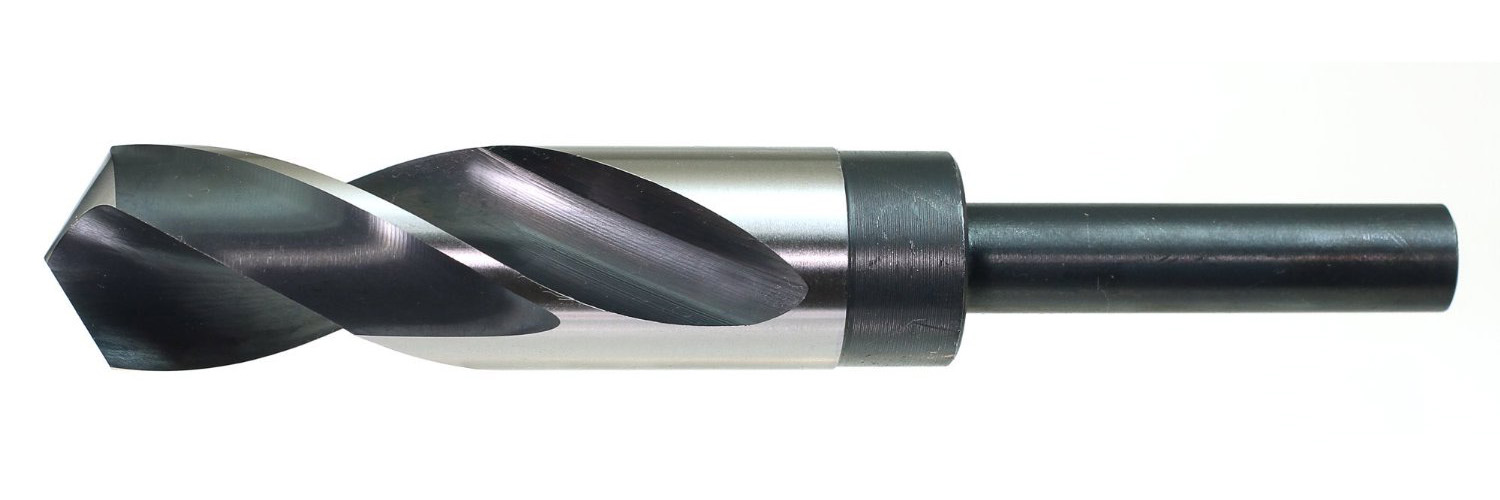

Expands the size range capacity of a 1/2" portable drill chuck. Common flute and overall length for minimal adjustment during tool changes. Precision ground for a high degree of concentricity between shank and body diameter. Ideal for drilling low and medium tensil strength materials.

Series 1000A / 1000F 118° POINT / REDUCED SHANK / 3-FLATS on 1000F

33/64"

1000A133

1000F133

17/32"

1000A134

1000F134

35/64"

1000A135

1000F135

9/16"

1000A136

1000F136

37/64"

1000A137

1000F137

19/32"

1000A138

1000F138

39/64"

1000A139

1000F139

5/8"

1000A140

1000F140

41/64"

1000A141

1000F141

21/32"

1000A142

1000F142

43/64"

1000A143

1000F143

11/16"

1000A144

1000F144

45/64"

1000A145

1000F145

23/32"

1000A146

1000F146

47/64"

1000A147

1000F147

3/4"

1000A148

1000F148

49/64"

1000A149

1000F149

25/32"

1000A150

1000F150

51/64"

1000A151

1000F151

13/16"

1000A152

1000F152

53/64"

1000A153

1000F153

27/32"

1000A154

1000F154

55/64"

1000A155

1000F155

7/8"

1000A156

1000F156

57/64"

1000A157

1000F157

29/32"

1000A158

1000F158

59/64"

1000A159

1000F159

15/16"

1000A160

1000F160

61/64"

1000A161

1000F161

31/32"

1000A162

1000F162

63/64"

1000A163

1000F163

1000A164

1000F164

1-1/64"

1000A201

1-1/32"

1000A202

1000F202

1-3/64"

1000A203

1-1/16"

1000A204

1000F204

1-5/64"

1000A205

1-3/32"

1000A206

1000F206

1-7/64"

1000A207

1-1/8"

1000A208

1000F208

1-9/64"

1000A209

1-5/32"

1000A210

1000F210

1-11/64"

1000A211

1-3/16"

1000A212

1000F212

1-13/64"

1000A213

1-7/32"

1000A214

1000F214

1-15/64"

1000A215

1-1/4"

1000A216

1000F216

1-9/32"

1000A218

1000F218

1-5/16"

1000A220

1000F220

1-3/8"

1000A224

1000F224

1-7/16"

1000A228

1000F228

1-1/2"

1000A232

1000F232

No. of Pcs	Description	EDP No.
1000A Series 1/2" Shank S&D Drill Sets
5	9/16" - 1" BY 8ths	1000A5
8	9/16" - 1" BY 16ths	1000A8
32	STAND 1/2" - 1" BY 64ths W/DRILLS	1000A32
1000F Series 1/2" Shank S&D Drill Sets
5	9/16" - 1" BY 8ths	1000F5
8	9/16" - 1" BY 16ths	1000F8
32	STAND 1/2" - 1" BY 64ths W/DRILLS	1000F32
