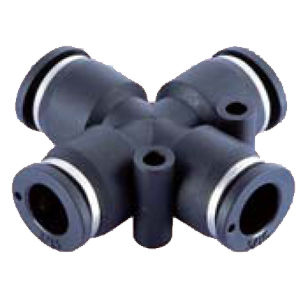

Union Cross
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| SQZ04-00 | SQZ06-00 | SQZ08-00 | SQZ10-00 | SQZ12-00 | |
|
||||||
|---|---|---|---|---|---|---|
| Tube | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| FX-T5/32-T5/32 | FX-T3/16-T3/16 | FX-T1/4-T1/4 | FX-T5/16-T5/16 | FX-T3/8-T3/8 | FX-T1/2-T1/2 | |

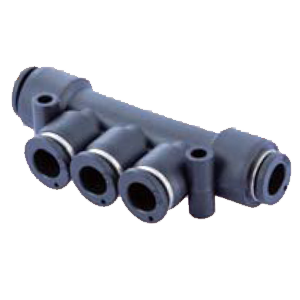

Reducer Triple Branch Union
|
|||||
|---|---|---|---|---|---|
| Tube | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| 5/32 | |||||
| 3/16 | |||||
| 1/4 | |||||
| 5/16 | |||||
| 04 | SQM06-04 | SQM08-04 | |||
| 06 | SQM08-06 | SQM10-06 | |||
| 08 | SQM10-08 | ||||
|
||||||
|---|---|---|---|---|---|---|
| Tube | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 5/32 | FM-T3/16-T5/32 | FM-T1/4-T5/32 | FM-T5/16-T5/32 | |||
| 3/16 | FM-T5/16-T3/16 | |||||
| 1/4 | FM-T5/16-T1/4 | FM-T3/8-T1/4 | ||||
| 5/16 | FM-T3/8-T5/16 | |||||
| 04 | ||||||
| 06 | ||||||
| 08 | ||||||

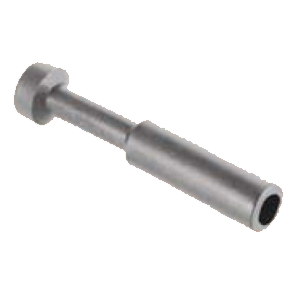

Plug
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| SQP04 | SQP06 | SQP08 | SQP10 | SQP12 | |
|
||||||
|---|---|---|---|---|---|---|
| Tube | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| FP-T5/32 | FP-T3/16 | FP-T1/4 | FP-T5/16 | FP-T3/8 | FP-T1/2 | |

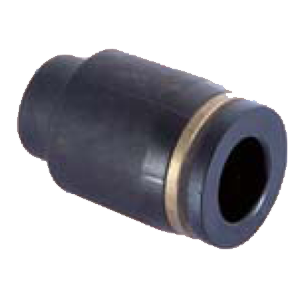

Cap
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| SQPF04 | SQPF06 | SQPF08 | SQPF10 | SQPF12 | |
|
||||||
|---|---|---|---|---|---|---|
| Tube | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| FPF-T5/32 | FPF-T3/16 | FPF-T1/4 | FPF-T5/16 | FPF-T3/8 | FPF-T1/2 | |
Complete line of Brass Fittings
