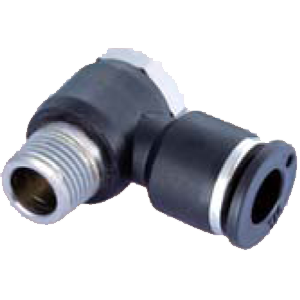

Male Banjo
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| 10-32UNF | |||||
| 1/8NPT | |||||
| 1/4NPT | |||||
| 3/8NPT | |||||
| 1/2NPT | |||||
| M5 | SQV04-M5 | SQV06-M5 | |||
| 1/8PT | SQV04-01S | SQV06-01S | SQV08-01S | ||
| 1/4PT | SQV06-02S | SQV08-02S | SQV10-02S | ||
| 3/8PT | SQV06-03S | SQV08-03S | SQV10-03S | SQV12-03S | |
| 1/2PT | SQV08-04S | SQV10-04S | SQV12-04S | ||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 10-32UNF | FEH-T5/32-U10 | FEH-T3/16-U10 | FEH-T1/4-U10 | |||
| 1/8NPT | FEH-T5/32-N1/8 | FEH-T3/16-N1/8 | FEH-T1/4-N1/8 | |||
| 1/4NPT | FEH-T3/16-N1/4 | FEH-T1/4-N1/4 | FEH-T5/16-N1/4 | |||
| 3/8NPT | FEH-T3/16-N3/8 | FEH-T5/16-N3/8 | FEH-T3/8-N3/8 | |||
| 1/2NPT | FEH-T3/8-N1/2 | FEH-T1/2-N1/2 | ||||
| M5 | FEH-T5/32-M5 | FEH-T1/4-M5 | ||||
| 1/8PT | FEH-T5/32-P1/8 | FEH-T1/4-P1/8 | FEH-T5/16-P1/8 | |||
| 1/4PT | FEH-T1/4-P1/4 | FEH-T5/16-P1/4 | FEH-T3/8-P1/4 | |||
| 3/8PT | FEH-T1/4-P3/8 | FEH-T5/16-P3/8 | FEH-T3/8-P3/8 | FEH-T1/2-P3/8 | ||
| 1/2PT | FEH-T3/8-P1/2 | FEH-T1/2-P1/2 | ||||

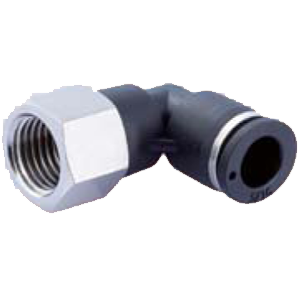

Female Elbow
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| 10-32UNF | |||||
| 1/8NPT | |||||
| 1/4NPT | |||||
| 3/8NPT | |||||
| 1/2NPT | |||||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 10-32UNF | FEF-T5/32-U10 | FEF-T3/16-U10 | FEF-T1/4-U10 | |||
| 1/8NPT | FEF-T5/32-N1/8 | FEF-T3/16-N1/8 | FEF-T1/4-N1/8 | FEF-T5/16-N1/8 | ||
| 1/4NPT | FEF-T5/32-N1/8 | FEF-T3/16-N1/8 | FEF-T1/4-N1/4 | FEF-T5/16-N1/4 | FEF-T3/8-N1/4 | |
| 3/8NPT | FEF-T1/4-N1/4 | FEF-T5/16-N3/8 | FEF-T3/8-N3/8 | FEF-T1/2-N3/8 | ||
| 1/2NPT | FEF-T3/8-N3/8 | FEF-T1/2-N1/2 | ||||

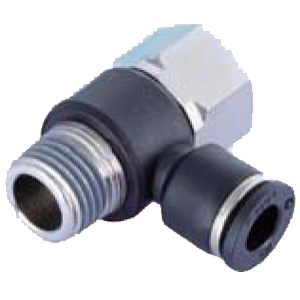

Female Banjo
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| 10-32UNF | |||||
| 1/8NPT | |||||
| 1/4NPT | |||||
| 3/8NPT | |||||
| 1/2NPT | |||||
| M5 | SQEU04-M5 | SQEU06-M5 | |||
| M6 | SQEU04-M6 | SQEU06-M6 | |||
| 1/8PT | SQEU04-01 | SQEU06-01 | SQEU08-01 | ||
| 1/4PT | SQEU08-02 | SQEU10-02 | |||
| 3/8PT | SQEU08-03 | SQEU10-03 | SQEU12-03 | ||
| 1/2PT | SQEU12-04 | ||||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 10-32UNF | FEU-T5/32-U10 | FEU-T3/16-U10 | FEU-T1/4-U10 | |||
| 1/8NPT | FEU-T5/32-N1/8 | FEU-T3/16-N1/8 | FEU-T1/4-N1/8 | FEU-T5/16-N1/8 | ||
| 1/4NPT | FEU-T3/16-N1/4 | FEU-T1/4-N1/4 | FEU-T5/16-N1/4 | FEU-T3/8-N1/4 | ||
| 3/8NPT | FEU-T5/16-N3/8 | FEU-T3/8-N3/8 | FEU-T1/2-N3/8 | |||
| 1/2NPT | FEU-T1/2-N1/4 | |||||
| M5 | FEU-T5/32-M5 | FEU-T1/4-M5 | ||||
| M6 | ||||||
| 1/8PT | FEU-T5/32-P1/8 | FEU-T1/4-P1/8 | FEU-T5/16-P1/8 | |||
| 1/4PT | FEU-T1/4-P1/4 | FEU-T5/16-P1/4 | FEU-T3/8-P1/4 | |||
| 3/8PT | FEU-T5/16-P3/8 | FEU-T3/8-P3/8 | FEU-T1/2-P3/8 | |||
| 1/2PT | FEU-T1/2-P1/2 | |||||
Complete line of Brass Fittings
