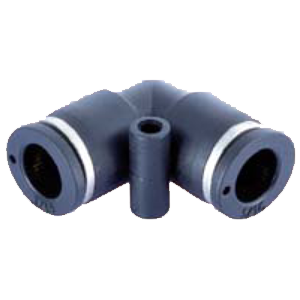

Union Elbow

Union Elbow - Metric Tube
Tube Metric Tube
04 06 08 10 12
  SQL04-00 SQL06-00 SQL08-00 SQL10-00 SQL12-00


Union Elbow - Inch Tube
Tube Inch Tube
5/32 3/16 1/4 5/16 3/8 1/2
  FE-T5/32-T5/32 FE-T3/16-T3/16 FE-T1/4-T1/4 FE-T5/16-T5/16 FE-T3/8-T3/8 FE-T1/2-T1/2

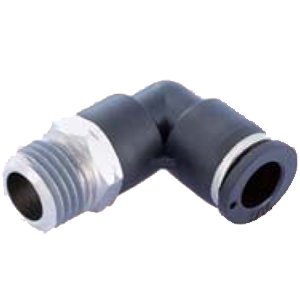

Male Elbow



Male Elbow - Metric Tube
Thread Metric Tube
04 06 08 10 12
M5 SQL04-M5 SQL06-M5
1/8PT SQL04-01S SQL06-01S SQL08-01S SQL10-01S
1/4PT SQL04-02S SQL06-02S SQL08-02S SQL10-02S SQL12-02S
3/8PT   SQL06-03S SQL08-03S SQL10-03S SQL12-03S
1/2PT     SQL08-04S SQL10-04S SQL12-04S


Male Elbow - Inch Tube
Tube Inch Tube
5/32 3/16 1/4 5/16 3/8 1/2
10-32UNF FE-T5/32-U10 FE-T3/16-U10 FE-T1/4-U10
1/8NPT FE-T5/32-N1/8 FE-T3/16-N1/8 FE-T1/4-N1/8 FE-T5/16-N1/8 FE-T3/8-N1/8
1/4NPT FE-T5/32-N1/4 FE-T3/16-N1/4 FE-T1/4-N1/4 FE-T5/16-N1/4 FE-T3/8-N1/4 FE-T1/2-N1/4
3/8NPT   FE-T3/16-N3/8 FE-T1/4-N3/8 FE-T5/16-N3/8 FE-T3/8-N3/8 FE-T1/2-N3/8
1/2NPT     FE-T1/4-N1/2 FE-T5/16-N1/2 FE-T3/8-N1/2 FE-T1/2-N1/2
M5 FE-T5/32-M5 FE-T3/16-M5 FE-T1/4-M5
1/8PT FE-T5/32-P1/8 FE-T3/16-P1/8 FE-T1/4-P1/8 FE-T5/16-P1/8 FE-T3/8-P1/8
1/4PT FE-T5/32-P1/4 FE-T3/16-P1/4 FE-T1/4-P1/4 FE-T5/16-P1/4 FE-T3/8-P1/4 FE-T1/2-P1/4
3/8PT   FE-T3/16-P3/8 FE-T1/4-P3/8 FE-T5/16-P3/8 FE-T3/8-P3/8 FE-T1/2-P3/8
1/2PT     FE-T1/4-P1/2 FE-T5/16-P1/2 FE-T3/8-P1/2 FE-T1/2-P1/2

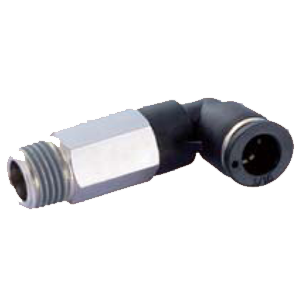

Extended Male Elbow

Extended Male Elbow - Metric Tube
Thread Metric Tube
04 06 08 10 12
M5 SQW04-M5 SQW06-M5
1/8PT SQW04-01S SQW06-01S SQW08-01S SQW10-01S SQW12-01S
1/4PT SQW04-02S SQW06-02S SQW08-02S SQW10-02S SQW12-02S
3/8PT SQW04-03S SQW06-03S SQW08-03S SQW10-03S SQW12-03S
1/2PT   SQW06-04S SQW08-04S SQW10-04S SQW12-04S


Extended Male Elbow - Inch Tube
Tube Inch Tube
5/32 3/16 1/4 5/16 3/8 1/2
10-32UNF FEL-T5/32-U10   FEL-T1/4-U10
1/8NPT FEL-T5/32-N1/8 FEL-T3/16-N1/8 FEL-T1/4-N1/8 FEL-T5/16-N1/8 FEL-T3/8-N1/8
1/4NPT FEL-T5/32-N1/4 FEL-T3/16-N1/4 FEL-T1/4-N1/4 FEL-T5/16-N1/4 FEL-T3/8-N1/4
3/8NPT   FEL-T3/16-N3/8 FEL-T1/4-N3/8 FEL-T5/16-N3/8 FEL-T3/8-N3/8
1/2NPT         FEL-T3/8-N1/2
M5 FEL-T5/32-M5 FEL-T3/16-M5 FEL-T1/4-M5
1/8PT FEL-T5/32-P1/8 FEL-T3/16-P1/8 FEL-T1/4-P1/8 FEL-T5/16-P1/8 FEL-T3/8-P1/8 FEL-T1/2-P1/8
1/4PT FEL-T5/32-P1/4 FEL-T3/16-P1/4 FEL-T1/4-P1/4 FEL-T5/16-P1/4 FEL-T3/8-P1/4 FEL-T1/2-P1/4
3/8PT   FEL-T3/16-P3/8 FEL-T1/4-P3/8 FEL-T5/16-P3/8 FEL-T3/8-P3/8 FEL-T1/2-P3/8
1/2PT       FEL-T5/16-P1/2 FEL-T3/8-P1/2 FEL-T1/2-P1/2
