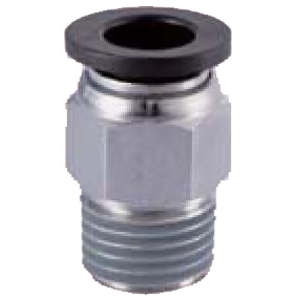

Male Straight
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| M5 | SQH04-M5 | SQH06-M5 | |||
| 1/8PT | SQH04-01S | SQH06-01S | SQH08-01S | SQH10-01S | |
| 1/4PT | SQH04-02S | SQH06-02S | SQH08-02S | SQH10-02S | SQH12-02S |
| 3/8PT | SQH06-03S | SQH08-03S | SQH10-03S | SQH12-03S | |
| 1/2PT | SQH08-04S | SQH10-04S | SQH12-04S | ||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 10-32UNF | FS-T5/32-U10 | FS-T3/16-U10 | FS-T1/4-U10 | |||
| 1/8NPT | FS-T5/32-N1/8 | FS-T3/16-N1/8 | FS-T1/4-N1/8 | FS-5T/16-N1/8 | FS-T3/8-N1/8 | FS-T1/2-N1/8 |
| 1/4NPT | FS-T5/32-N1/4 | FS-T3/16-N1/4 | FS-T1/4-N1/4 | FS-5T/16-N1/4 | FS-T3/8-N1/4 | FS-T1/2-N1/4 |
| 3/8NPT | FS-T5/32-N3/8 | FS-T3/16-N3/8 | FS-T1/4-N3/8 | FS-5T/16-N3/8 | FS-T3/8-N3/8 | FS-T1/2-N3/8 |
| 1/2NPT | FS-T1/4-N1/2 | FS-5T/16-N1/2 | FS-T3/8-N1/2 | FS-T1/2-N1/2 | ||
| M5 | FS-T5/32-M5 | FS-T3/16-M5 | FS-T1/4-M5 | |||
| 1/8PT | FS-T5/32-P1/8 | FS-T3/16-P1/8 | FS-T1/4-P1/8 | FS-5T/16-P1/8 | FS-T3/8-P1/8 | |
| 1/4PT | FS-T5/32-P1/4 | FS-T3/16-P1/4 | FS-T1/4-P1/4 | FS-5T/16-P1/4 | FS-T3/8-P1/4 | FS-T1/2-P1/4 |
| 3/8PT | FS-T5/32-P3/8 | FS-T3/16-P3/8 | FS-T1/4-P3/8 | FS-5T/16-P3/8 | FS-T3/8-P3/8 | FS-T1/2-P3/8 |
| 1/2PT | FS-T1/4-P1/2 | FS-5T/16-P1/2 | FS-T3/8-P1/2 | FS-T1/2-P1/2 | ||

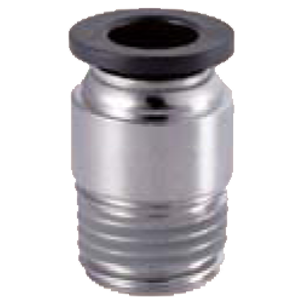

Round Male Straight
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| M5 | SQSR04-M5 | SQSR06-M5 | |||
| M6 | SQSR04-M6 | SQSR06-M6 | |||
| 1/8PT | SQSR04-01 | SQSR06-01 | SQSR08-01 | SQSR10-01 | SQSR12-01 |
| 1/4PT | SQSR04-02 | SQSR06-02 | SQSR08-02 | SQSR10-02 | SQSR12-02 |
| 3/8PT | SQSR04-03 | SQSR06-03 | SQSR08-03 | SQSR10-03 | SQSR12-03 |
| 1/2PT | SQSR08-04 | SQSR10-04 | SQSR12-04 | ||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 10-32UNF | FSR-T5/32-U10 | FSR-T3/16-U10 | FSR-T1/4-U10 | |||
| 1/8NPT | FSR-T5/32-N1/8 | FSR-T3/16-N1/8 | FSR-T1/4-N1/8 | FSR-5T/16-N1/8 | FSR-T3/8-N1/8 | |
| 1/4NPT | FSR-T5/32-N1/4 | FSR-T3/16-N1/4 | FSR-T1/4-N1/4 | FSR-5T/16-N1/4 | FSR-T3/8-N1/4 | |
| 3/8NPT | FSR-T5/32-N3/8 | FSR-5T/16-N3/8 | FSR-T3/8-N3/8 | |||
| 1/2NPT | FSR-T3/8-N1/2 | |||||
| M5 | ||||||
| M5 | ||||||
| 1/8PT | FSR-T5/32-P1/8 | FSR-T1/4-P1/8 | FSR-5T/16-P1/8 | |||
| 1/4PT | FSR-T5/32-P1/4 | FSR-T1/4-P1/4 | FSR-5T/16-P1/4 | FSR-T3/8-P1/4 | FSR-T1/2-P1/4 | |
| 3/8PT | FSR-5T/16-P3/8 | FSR-T3/8-P3/8 | FSR-T1/2-P3/8 | |||
| 1/2PT | FSR-T3/8-P1/2 | FSR-T1/2-P1/2 | ||||

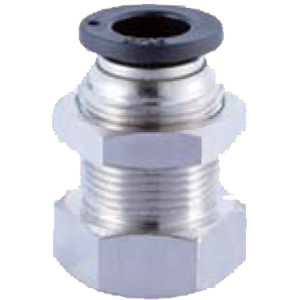

Bulkhead Female Straight
|
|||||
|---|---|---|---|---|---|
| Thread | Metric Tube | ||||
| 04 | 06 | 08 | 10 | 12 | |
| 1/8PT | SQE04-01 | SQE06-01 | SQE08-01 | SQE10-01 | |
| 1/4PT | SQE06-02 | SQE08-02 | SQE10-02 | SQE12-02 | |
| 3/8PT | SQE08-03 | SQE10-03 | SQE12-03 | ||
| 1/2PT | SQE12-04 | ||||
|
||||||
|---|---|---|---|---|---|---|
| Thread | Inch Tube | |||||
| 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | |
| 1/8NPT | FSTF-T5/32-N1/8 | FSTF-T3/16-N1/8 | FSTF-T1/4-N1/8 | FSTF-T5/16-N1/8 | ||
| 1/4NPT | FSTF-T3/16-N1/4 | FSTF-T1/4-N1/4 | FSTF-T5/16-N1/4 | FSTF-T3/8-N1/4 | FSTF-T1/2-N1/4 | |
| 3/8NPT | FSTF-T5/16-N3/8 | FSTF-T3/8-N3/8 | FSTF-T1/2-N3/8 | |||
| 1/2NPT | FSTF-T1/2-N1/2 | |||||
| 1/8PT | FSTF-T5/32-P1/8 | FSTF-T3/16-P1/8 | FSTF-T1/4-P1/8 | FSTF-T5/16-P1/8 | ||
| 1/4PT | FSTF-T3/16-P1/4 | FSTF-T1/4-P1/4 | FSTF-T5/16-P1/4 | FSTF-T3/8-P1/4 | FSTF-T1/2-P1/4 | |
| 3/8PT | FSTF-T1/4-P3/8 | FSTF-T5/16-P3/8 | FSTF-T3/8-P3/8 | FSTF-T1/2-P3/8 | ||
| 1/2PT | FSTF-T1/2-P1/2 | |||||
