Hand Taps

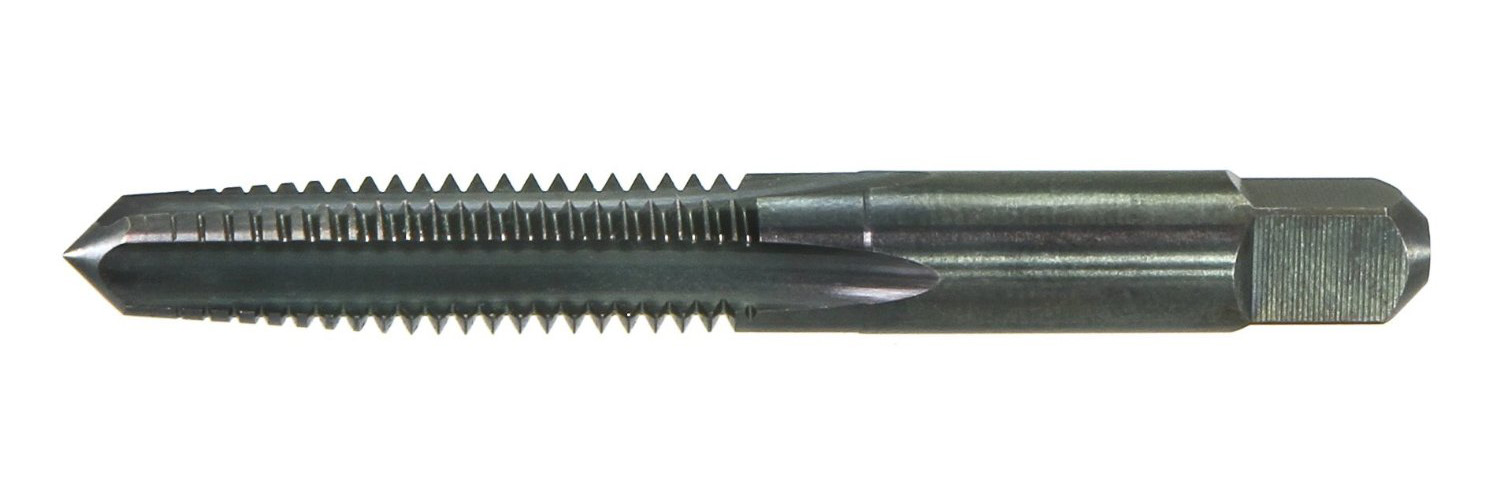

Hand Taps - 2000N

HIGH SPEED STEEL - Fractional / Black Oxide
PACKAGING:
1/4" - 12 per pack
5/16" thru 1/2" - 6 per pack
9/16" thru 1" - 3 per pack
1-1/8" and up - individually packaged
Size NC NF Overall Length Length of Thread No.
of Flutes		 Pitch Dia Limits 2000N EDP No.
Taper Plug Bottoming Sets
Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.
TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
1/4" 20 - 2-1/2" 1" 4 H3 20N116CT 20N116CP 20N116CB 20N116CS
1/4" - 28 2-1/2" 1" 4 H3 20N116FT 20N116FP 20N116CB 20N116FS
5/16" 18 - 2-23/32" 1-1/8" 4 H3 20N120CT 20N120CP 20N120CB 20N120CS
5/16" - 24 2-23/32" 1-1/8" 4 H3 20N120FT 20N120FP 20N120FB 20N120FS
3/8" 16 - 2-15/16" 1-1/4" 4 H3 20N124CT 20N124CP 20N124CB 20N124CS
3/8" - 24 2-15/16" 1-1/4" 4 H3 20N124FT 20N124FP 20N124FB 20N124FS
7/16" 14 - 3-5/32" 1-7/16" 4 H3 20N128CT 20N128CP 20N128CB 20N128CS
7/16" - 20 3-5/32" 1-7/16" 4 H3 20N128FT 20N128FP 20N128FB 20N128FS
1/2" 13 - 3-3/8" 1-21/32" 4 H3 20N132CT 20N132CP 20N132CB 20N132CS
1/2" - 20 3-3/8" 1-21/32" 4 H3 20N132FT 20N132FP 20N132FB 20N132FS
9/16" 12 - 3-19/32" 1-21/32" 4 H3 20N136CT 20N136CP 20N136CB 20N136CS
9/16" - 18 3-19/32" 1-21/32" 4 H3 20N136FT 20N136FP 20N136FB 20N136FS
5/8" 11 - 3-13/16" 1-13/16" 4 H3 20N140CT 20N140CP 20N140CB 20N140CS
5/8" - 18 3-13/16" 1-13/16" 4 H3 20N140FT 20N140FP 20N140FB 20N140FS
11/16" 11 - 4-1/32" 1-13/16" 4 H3 20N144CT 20N144CP 20N144CB 20N144CS
11/16" - 16 4-1/32" 1-13/16" 4 H3 20N144FT 20N144FP 20N144FB 20N144FS
3/4" 10 - 4-1/4" 2" 4 H3 20N148CT 20N148CP 20N148CB 20N148CS
3/4" - 16 4-1/4" 2" 4 H3 20N148FT 20N148FP 20N148FB 20N148FS
7/8" 9 - 4-11/16" 2-7/32" 4 H4 20N156CT 20N156CP 20N156CB 20N156CS
7/8" - 14 4-11/16" 2-7/32" 4 H4 20N156FT 20N156FP 20N156FB 20N156FS
1" 8 - 5-1/8" 2-1/2" 4 H4 20N164CT 20N164CP 20N164CB 20N164CS
1" - 12 5-1/8" 2-1/2" 4 H4 20N164FT 20N164FP 20N164FB 20N164FS
1" - 14 5-1/8" 2-1/2" 4 H4 20N164ST 20N164SP 20N164SB 20N164SS
1-1/8" 7 - 5-7/16" 2-9/16" 4 H4 20N208CT 20N208CP 20N208CB 20N208CS
1-1/8" - 12 5-7/16" 2-9/16" 4 H4 20N208FT 20N208FP 20N208FB 20N208FS
1-1/4" 7 - 5-3/4" 2-9/16" 4 H4 20N216CT 20N216CP 20N216CB 20N216CS
1-1/4" - 12 5-3/4" 2-9/16" 6 H4 20N216FT 20N216FP 20N216FB 20N216FS
1-3/8" 6 - 6-1/16" 3" 4 H4 20N224CT 20N224CP 20N224CB 20N224CS
1-3/8" - 12 6-1/16" 3" 6 H4 20N224FT 20N224FP 20N224FB 20N224FS
1-1/2" 6 - 6-3/8" 3" 4 H4 20N232CT 20N232CP 20N232CB 20N232CS
1-1/2" - 12 6-3/8" 3" 6 H4 20N232FT 20N232FP 20N232FB 20N232FS

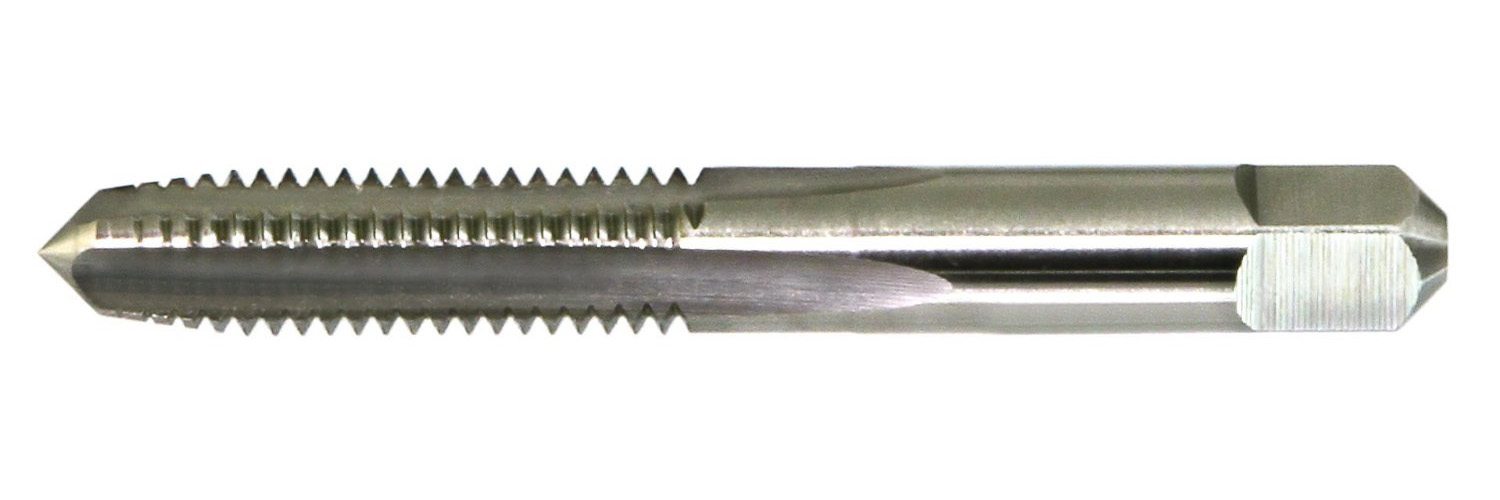

Hand Taps - 2000

HIGH SPEED STEEL - Machine Screw / Bright
PACKAGING:
#0 thru 1/4" - 12 per pack
5/16" thru 1/2" - 6 per pack
9/16" thru 1" - 3 per pack
1-1/8" and up - individually packaged
Size NC NF Overall Length Length of Thread No.
of Flutes		 Pitch Dia Limits 2000 EDP No.
Taper Plug Bottoming Sets
Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.

Taper – 7-10 pitch chamfer length. Starts the thread square with the workpiece
Plug – 3-5 pitch chamfer length. Generally used in through holes
Bottoming – 1-2 pitch chamfer length. Generates the thread to the bottom
Sets – Contains 1 each of Taper, Plug, and Bottoming
TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
0 - 80 1-5/8" 5/16" 2 H1 20A000FT 20A000FP 20A000FB 20A000FS
1 64 - 1-11/16" 3/8" 2 H1 20A001CT 20A001CP 20A001CB 20A001CS
1 - 72 1-11/16" 3/8" 2 H1 20A001FT 20A001FP 20A001FB 20A001FS
2 56 - 1-3/4" 7/16" 3 H2 20A002CT 20A002CP 20A002CB 20A002CS
2 - 64 1-3/4" 7/16" 3 H2 20A002FT 20A002FP 20A002FB 20A002FS
3 48 - 1-13/16" 1/2" 3 H2 20A003CT 20A003CP 20A003CB 20A003CS
3 - 56 1-13/16" 1/2" 3 H2 20A003FT 20A003FP 20A003FB 20A003FS
4 40 - 1-7/8" 9/16" 3 H2 20A004CT 20A004CP 20A004CB 20A004CS
4 - 36 1-7/8" 9/16" 3 H2 20A004ST 20A004SP 20A004SB 20A004SS
4 - 48 1-7/8" 9/16" 3 H2 20A004FT 20A004FP 20A004FB 20A004FS
5 40   1-15/16" 5/8" 3 H2 20A005CT 20A005CP 20A005CB 20A005CS
5 - 44 1-15/16" 5/8" 3 H2 20A005FT 20A005FP 20A005FB 20A005FS
6 32 - 2" 11/16" 3 H3 20A006CT 20A006CP 20A006CB 20A006CS
6 - 40 2" 11/16" 3 H2 20A006FT 20A006FP 20A006FB 20A006FS
8 32 - 2-1/8" 3/4" 4 H3 20A008CT 20A008CP 20A008CB 20A008CS
8 - 36 2-1/8" 3/4" 4 H2 20A008FT 20A008FP 20A008FB 20A008FS
10 24 - 2-3/8" 7/8" 4 H3 20A010CT 20A010CP 20A010CB 20A010CS
10 - 32 2-3/8" 7/8" 4 H3 20A010FT 20A010FP 20A010FB 20A010FS
12 24 - 2-3/8" 15/16" 4 H3 20A012CT 20A012CP 20A012CB 20A012CS
12 - 28 2-3/8" 15/16" 4 H3 20A012FT 20A012FP 20A012FB 20A012FS


Hand Taps - 2000

HIGH SPEED STEEL - Fractional / Bright
PACKAGING:
#0 thru 1/4" - 12 per pack
5/16" thru 1/2" - 6 per pack
9/16" thru 1" - 3 per pack
1-1/8" and up - individually packaged
Size NC NF Overall Length Length of Thread No.
of Flutes		 Pitch Dia Limits 2000 EDP No.
Taper Plug Bottoming Sets
Straight Flute “Hand Taps” are the most popular and versatile style of taps in general machine tapping operations. They are for general use in production tapping or hand operations in a wide range of application material groups.

Taper – 7-10 pitch chamfer length. Starts the thread square with the workpiece
Plug – 3-5 pitch chamfer length. Generally used in through holes
Bottoming – 1-2 pitch chamfer length. Generates the thread to the bottom
Sets – Contains 1 each of Taper, Plug, and Bottoming
TAPER, PLUG & BOTTOMING / THROUGH OR BLIND HOLE
1/4" 20 - 2-1/2" 1" 4 H3 20A116CT 20A116CP 20A116CB 20A116CS
1/4" - 28 2-1/2" 1" 4 H3 20A116FT 20A116FP 20A116FB 20A116FS
5/16" 18 - 2-23/32" 1-1/8" 4 H3 20A120CT 20A120CP 20A120CB 20A120CS
5/16" - 24 2-23/32" 1-1/8" 4 H3 20A120FT 20A120FP 20A120FB 20A120FS
3/8" 16 - 2-15/16" 1-1/4" 4 H3 20A124CT 20A124CP 20A124CB 20A124CS
3/8" - 24 2-15/16" 1-1/4" 4 H3 20A124FT 20A124FP 20A124FB 20A124FS
7/16" 14 - 3-5/32" 1-7/16" 4 H3 20A128CT 20A128CP 20A128CB 20A128CS
7/16" - 20 3-5/32" 1-7/16" 4 H3 20A128FT 20A128FP 20A128FB 20A128FS
1/2" 13 - 3-3/8" 1-21/32" 4 H3 20A132CT 20A132CP 20A132CB 20A132CS
1/2" - 20 3-3/8" 1-21/32" 4 H3 20A132FT 20A132FP 20A132FB 20A132FS
9/16" 12 - 9/16" 1-21/32" 4 H3 20A136CT 20A136CP 20A136CB 20A136CS
9/16" - 18 9/16" 1-21/32" 4 H3 20A136FT 20A136FP 20A136FB 20A136FS
5/8" 11 - 3-13/16" 1-13/16" 4 H3 20A140CT 20A140CP 20A140CB 20A140CS
5/8" - 18 3-13/16" 1-13/16" 4 H3 20A140FT 20A140FP 20A140FB 20A140FS
11/16" 11 - 4-1/32" 1-13/16" 4 H3 20A144CT 20A144CP 20A144CB 20A144CS
11/16" - 16 4-1/32" 1-13/16" 4 H3 20A144FT 20A144FP 20A144FB 20A144FS
3/4" 10 - 4-1/4" 2" 4 H3 20A148CT 20A148CP 20A148CB 20A148CS
3/4" - 16 4-1/4" 2" 4 H3 20A148FT 20A148FP 20A148FB 20A148FS
7/8" 9 - 4-11/16" 2-7/32" 4 H4 20A156CT 20A156CP 20A156CB 20A156CS
7/8" - 14 4-11/16" 2-7/32" 4 H4 20A156FT 20A156FP 20A156FB 20A156FS
1" 8 - 5-1/8" 2-1/2" 4 H4 20A164CT 20A164CP 20A164CB 20A164CS
1" - 12 5-1/8" 2-1/2" 4 H4 20A164FT 20A164FP 20A164FB 20A164FS
1" - 14 5-1/8" 2-1/2" 4 H4 20A164ST 20A164SP 20A164SB 20A164SS
1-1/8" 7 - 5-7/16" 2-9/16" 4 H4 20A208CT 20A208CP 20A208CB 20A208CS
1-1/8" - 12 5-7/16" 2-9/16" 4 H4 20A208FT 20A208FP 20A208FB 20A1208FS
1-1/4" 7 - 5-3/4" 2-9/16" 4 H4 20A216CT 20A216CP 20A216CB 20A216CS
1-1/4" - 12 5-3/4" 2-9/16" 6 H4 20A216FT 20A216FP 20A216FB 20A216FS
1-3/8" 6 - 6-1/16" 3" 4 H4 20A224CT 20A224CP 20A224CB 20A224CS
1-3/8" - 12 6-1/16" 3" 6 H4 20A224FT 20A224FP 20A224FB 20A224FS
1-1/2" 6 - 6-3/8" 3" 4 H4 20A232CT 20A232CP 20A232CB 20A232CS
1-1/2" - 12 6-3/8" 3" 6 H4 20A232FT 20A232FP 20A232FB 20A232FS
